Inverter

Inverter

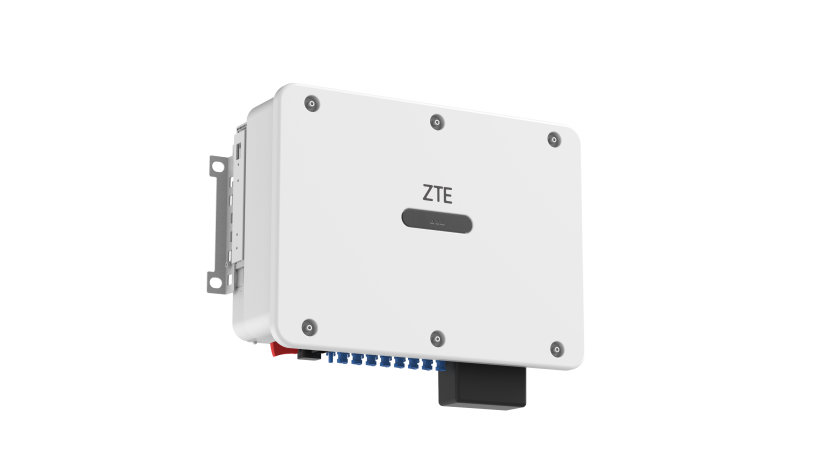

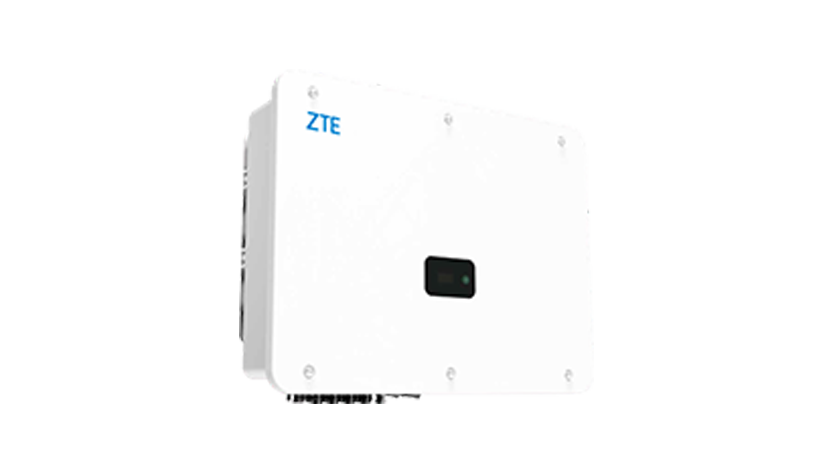

ZTE has launched the 50kW string PV inverter, specially customized for efficient power generation and stable operation of PV systems. This model integrates high conversion efficiency, intelligent operation and maintenance, and compact design. It is equipped with a 5*2 string MPPT tracking system, supports a maximum input voltage of 1100V, with maximum efficiency up to 99% and comprehensive efficiency up to 98.3%. Through PID night repair and 1.6 times ultra-high capacity ratio technology, it significantly improves the power generation income of the PV system; DC arc detection, AC and DC class II lightning protection, and AFC protection functions provide comprehensive safety protection for the power station. The body weighs only 50kg, with wall-mounted installation and quick terminal design (size 675×590×275mm). The IP66 high protection level adapts to harsh environments, helping rapid deployment and grid connection in scenarios such as industrial and commercial roofs and ground power stations, achieving perfect integration of efficient power generation and intelligent operation and maintenance.
