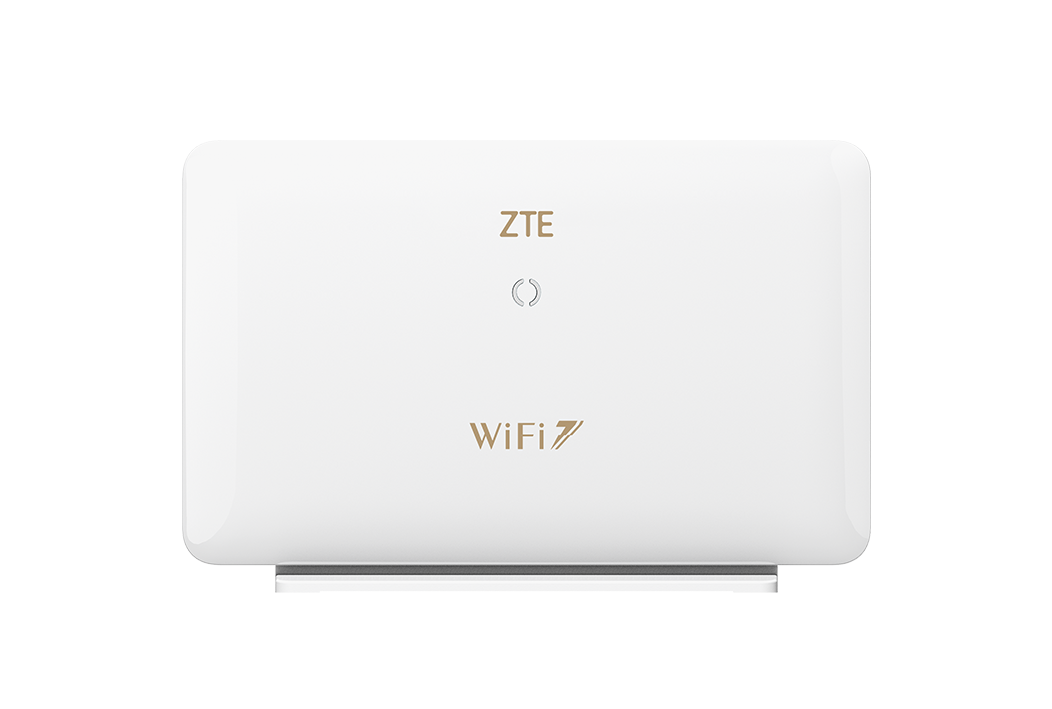

FTTR GPON Main ONT — ZXHN G6706

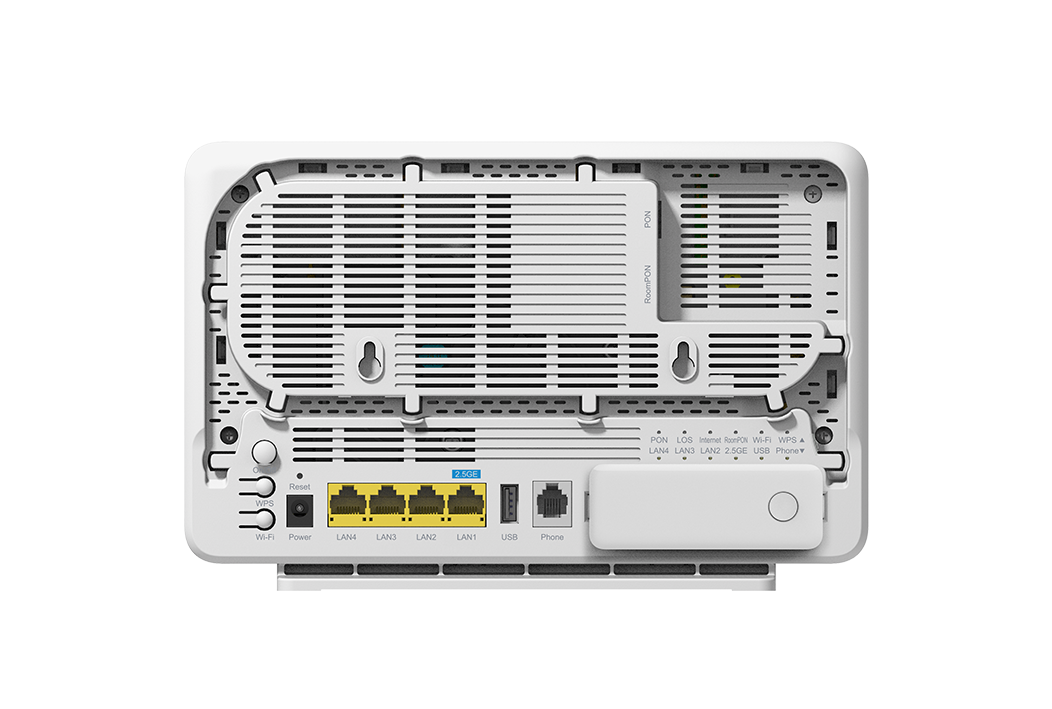

The ZXHN G6706 is a BE3600 dual-band Wi-Fi 7 GPON ONT, supporting 160MHz@5GHz. It is well suited for Fiber to the Room (FTTR) scenarios. It has one 2.5 GE port, three GE LAN ports, one phone port, one USB port, and one Type-C port for NAS stick. It supports mesh networking with up to 16 FTTR APs, enabling whole-home Gigabit+ Wi-Fi coverage.

Product Highlights

Distributed NAS
· Both Main and Room ONTs support NAS storage, configurable with 256GB/512GB/1TB/2TB expansion
· Features intelligent album classification and accurate search for people + scenes
· One-click family sharing for files, audio, video, and photo albums
Ultimate Wi-Fi Performance
· Dual-band speed up to 3600Mbps
· DL/UL MU-MIMO, OFDMA, MLO, and beamforming bring better concurrency and higher efficiency
· Six high-power antennas with intelligent algorithms improve long-distance coverage
Flexible Management
· Easy Installation with plug-and-play operation
· Comprehensive mobile control via ZLife APP

Product Parameters

WAN
GPON
Dimensions
240 x 148 x 30 mm
LAN
Symmetrical 2.5G GPON + 2.5GE + 3*GE + 1*FXS + 1*USB + 1*Type C (for NAS)
2 x 2 802.11b/g/n/ax/be @2.4GHz
2 x 2 802.11a/n/ac/ax/be @5GHz
Key Functions
Up to 16 splitting, 128 concurrent STAs
NAS for home storage
Mesh Wi-Fi with smart roaming
Parental controls/Smart QoS
Cloud remote management via SCP
ZLife APP management
