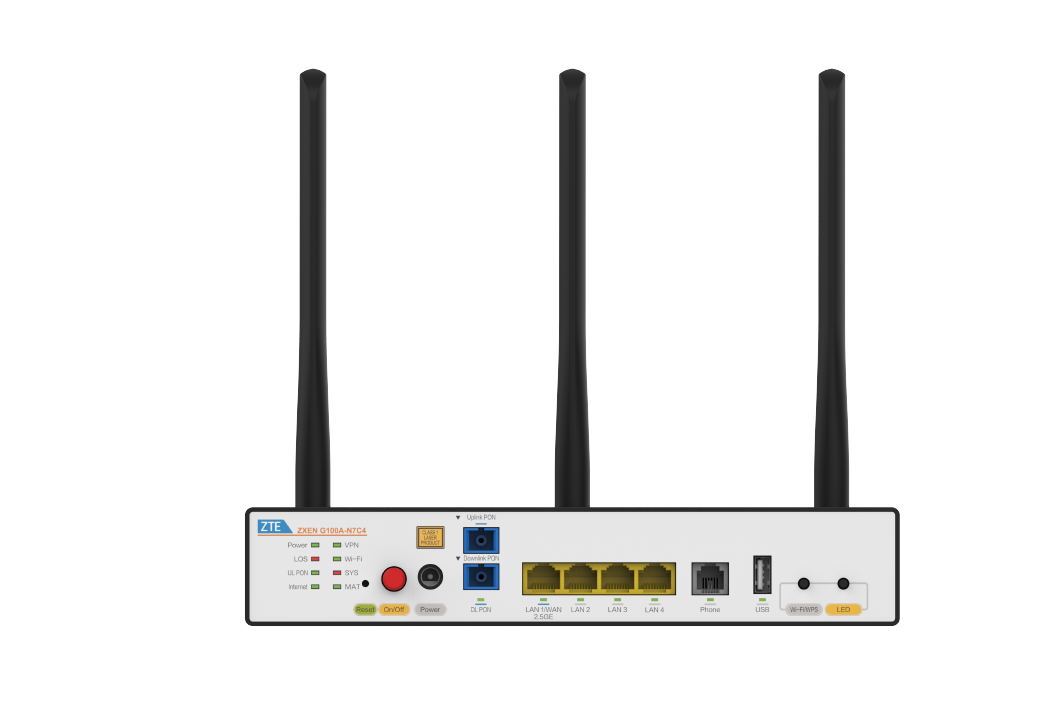

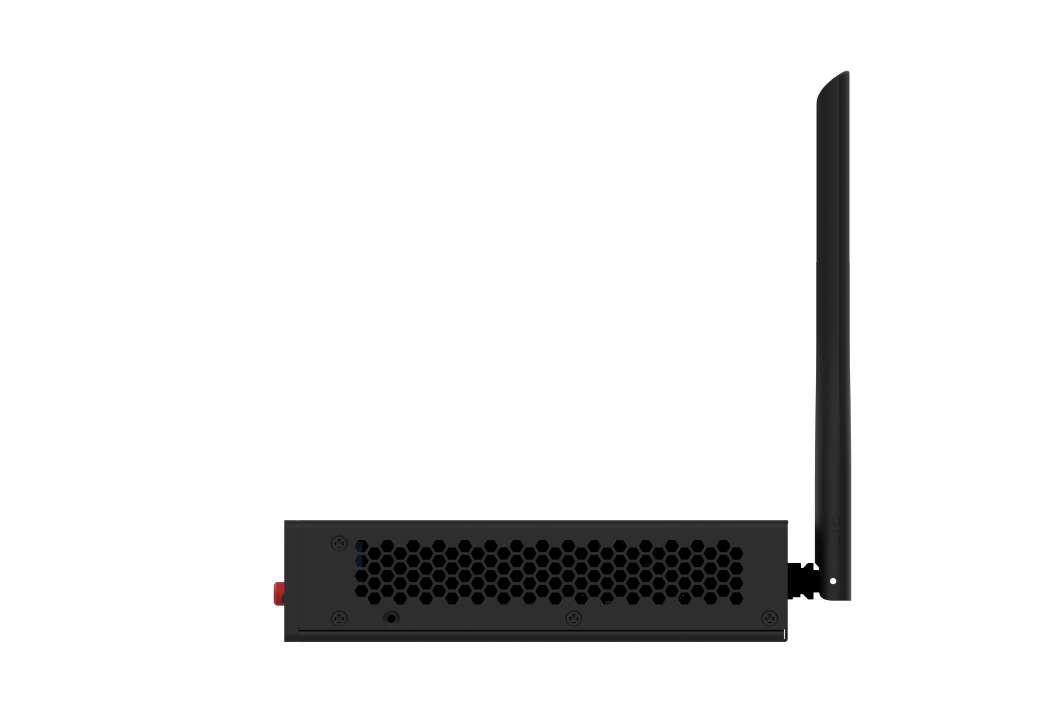

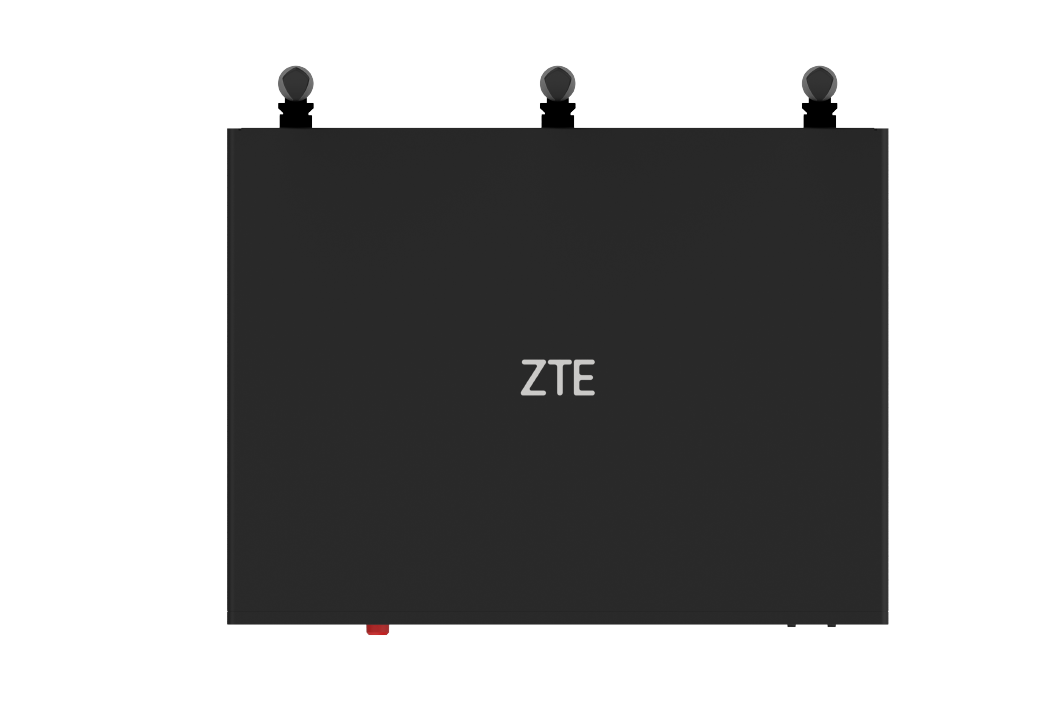

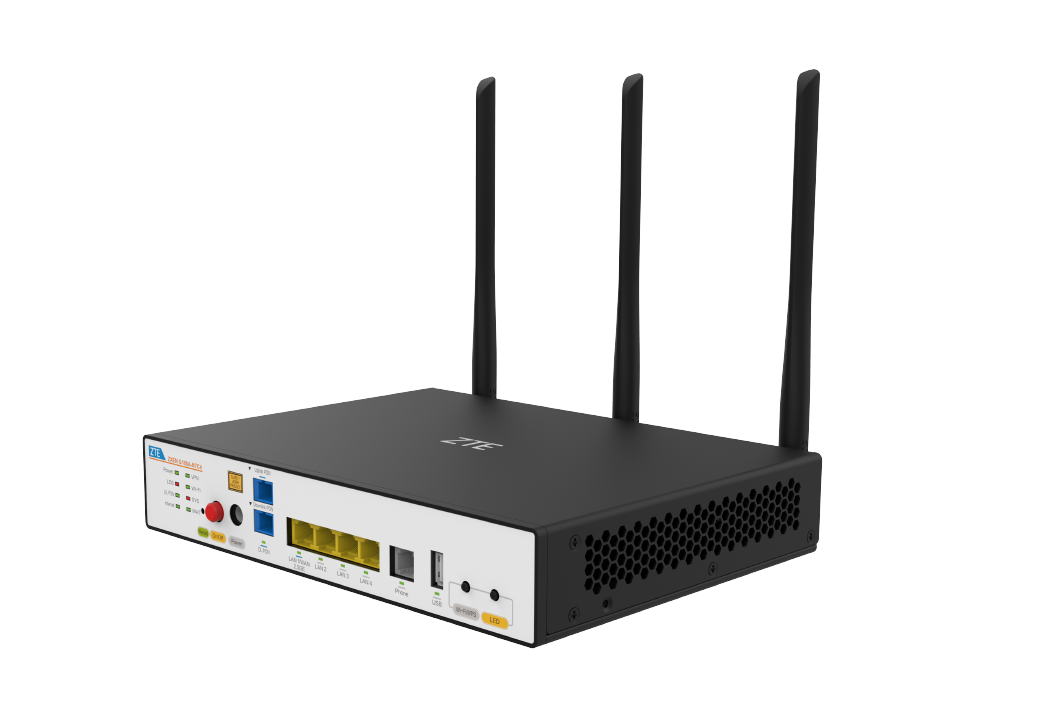

FTTR-B Combo PON Main ONT — ZXEN G100A-N7C4

The ZXEN G100A-N7C4 is an all-optical networking product specially designed for the FTTR-B scenario. It works as the "Three-Network Central Controller" in support of optical + wireless + voice services. It is embedded with a mini OLT, a Wi-Fi controller and a mini PBX module to carry a variety of services.

Product Highlights

Industry's 1st ASIC FTTR chip
· Reduces power consumption by 70% and transmission latency by 75%
"Three-Network Central Controller"
· Works as the ""Three-Network Central Controller"" in support of optical + wireless + voice services, and embedded with a mini OLT, a Wi-Fi controller and a mini PBX to carry a variety of services.
Wider Access, Massive STA Connections
· Up to 1:128 splitting ratio for wider coverage
· Up to 1000 STAs connected to the network

Product Parameters

WAN
XGS-PON+GPON Combo
Dimensions
240 x 180 x 43.6 mm
LAN
GPON
1 x 2.5 GE RJ-45 port (LAN/WAN)
3 x GE RJ-45 ports
1 x FXS RJ-11 port
1 x USB 2.0
2 x 2 802.11b/g/n/ax @ 2.4 GHz
2 x 2 802.11a/n/ac/ax 160 MHz @ 5 GHz
Key Functions
Up to 1:128 splitting ratio, 1000 STAs concurrent
Mini PBX for room ONT
VPN: L2TP/PPTP/IPsec
Public Wi-Fi/Mesh Wi-Fi
Portal/802.1x authentication
Smart QoS
Cloud remote management (SCP)
ZLife app management
