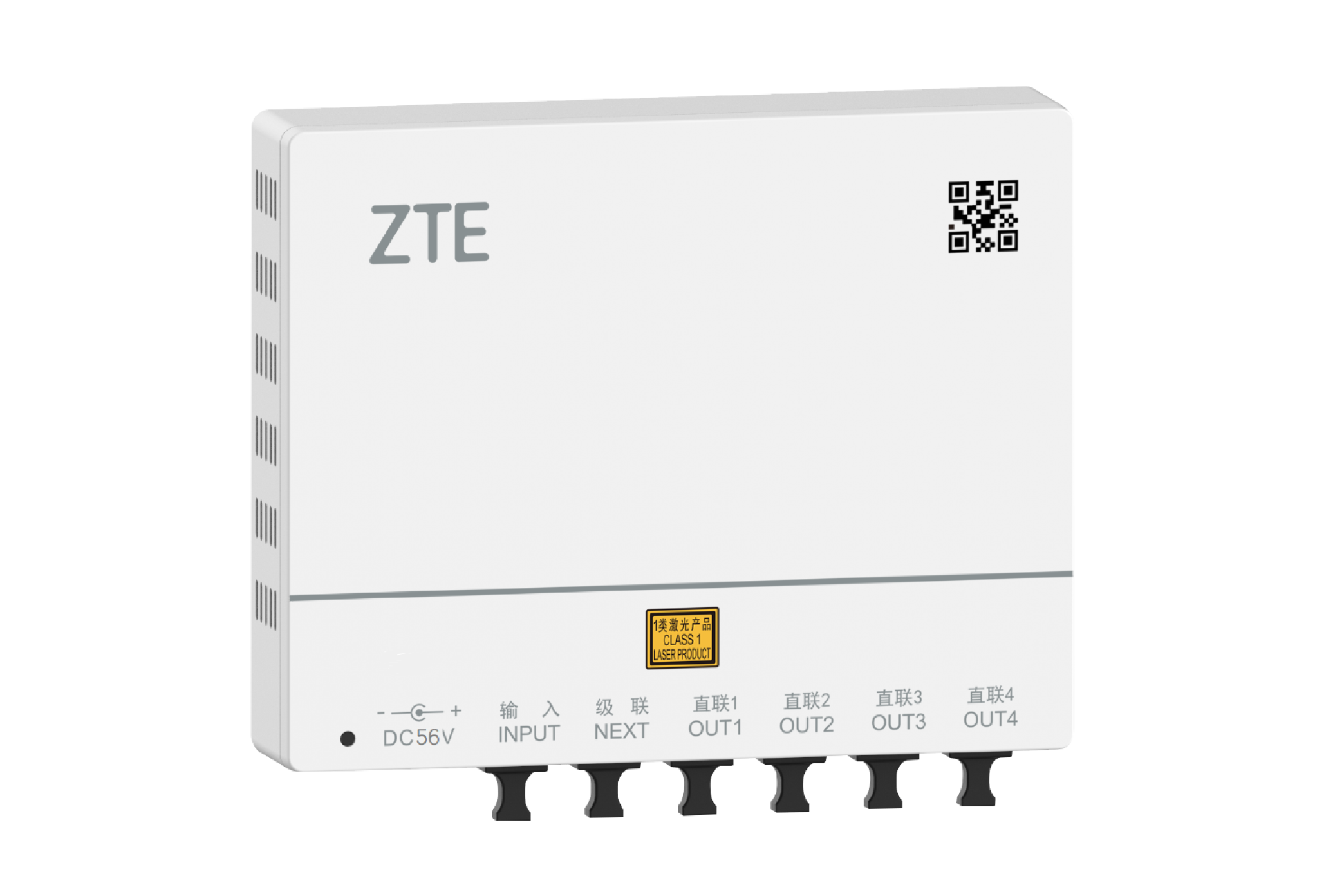

ZXA10 POF 1:5 Splitter Terminal Box
The ZTE ZXA10 POF 1:5 splitter terminal box provides power and data transmission channels for users to access the Internet.
Product Highlights
- · Installed indoors on a wall or in a weak-current box; operating temperature: –5℃ to 45℃
- · Four interfaces for connecting terminals, and one POF interface for cascading a lower-level POF device
- · Lightning protection level: 6 kV (line to line), 6 kV (line to ground)
Product Parameters
- Dimensions (H x W x D)
- 137 x 120 x 29 mm
- Power input
- 56 VDC (converted by an AC adapter) or POF
- Capacity
- Uplink interface x 1
cascading interface x 1
user interface x 4
- Optical splitter and loss
- IL (user interface) ≤ 16.3 dB
IL (cascading interface) ≤ 2.2 dB
return loss: RL ≥ 50 dB (UPC)
