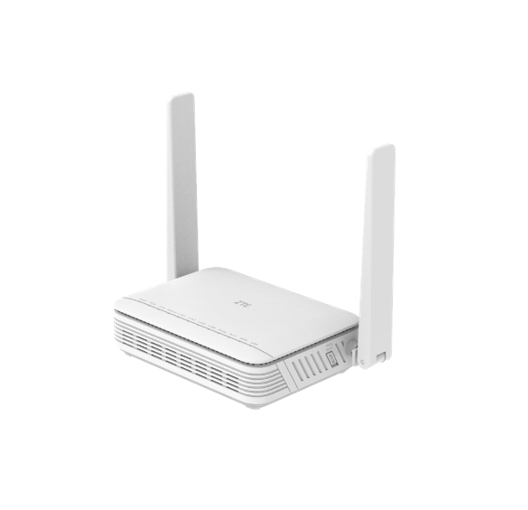

AX3000 Dual-Band Wi-Fi 6 GPON ONT — ZXHN F6201B

The ZXHN F6201B is an AX3000 dual-band triple-play GPON gateway that provides four GE LAN ports and supports 160MHz@5GHz. It leverages the MU-MIMO and OFDMA technologies to significantly improve efficiency of Wi-Fi networks and provides unparalleled Wi-Fi performance, allowing users to surf the internet, watch videos and play online games.

Product Highlights

Ultimate Wi-Fi Experience: · DL/UL MU-MIMO, OFDMA and Beamforming bring better concurrency and higher bandwidth
· Dual-band concurrent Wi-Fi 6 speed up to 3.0 Gbps
· Band steering and smart roaming optimize QoS

More Flexible Management: · Complies with ITU-T G.988 OMCI
· Complies with TR-069 management

High Reliability: · The highly reliable heat dissipation design guarantees its stable operation.
· The dual image ensures uninterrupted services during software download or upgrade, enhancing software reliability.

Product Parameters

WAN: GPON

LAN: 4 x GE RJ-45 ports
2 x 2 802.11b/g/n/ax Wi-Fi @ 2.4 GHz
2 x 2 802.11a/n/ac/ax Wi-Fi @ 5 GHz

Buttons: Wi-Fi, WPS, Reset, Power On/Off

Power Supply: AC adapter: 12 VDC, 1A

LEDs: Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, 2.4G, 5G, WPS

Dimensions (W x H x D): 183 x 117 x 40mm

Operating Temperature: 0℃ ~ +45℃

Humidity: 5% - 95% (non-condensing)

Certification: CE, ROHS, Wi-Fi 6

Resources

ZXHN F6201B Product Description

Preview Download

ZXHN F6201B Datasheet
