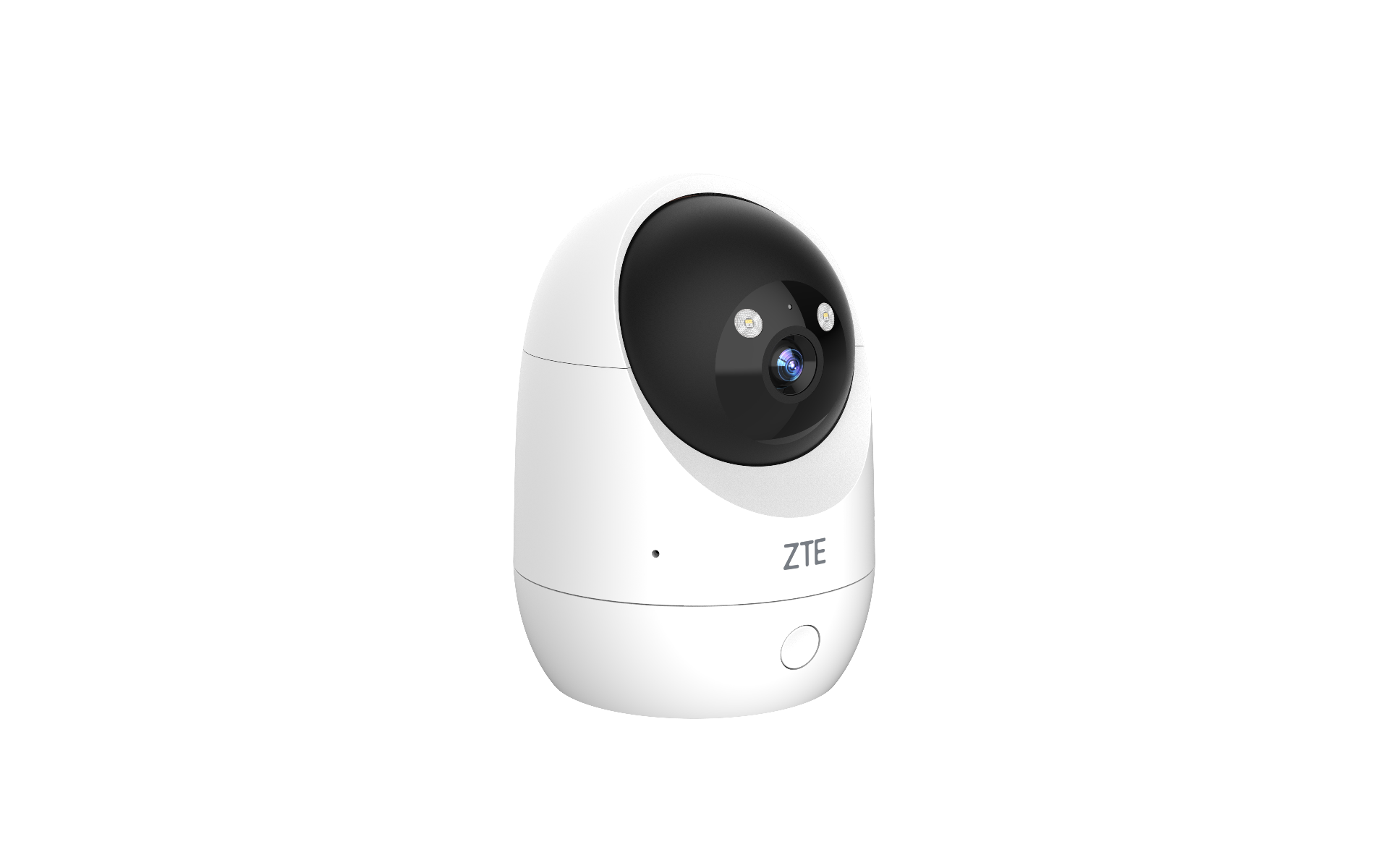

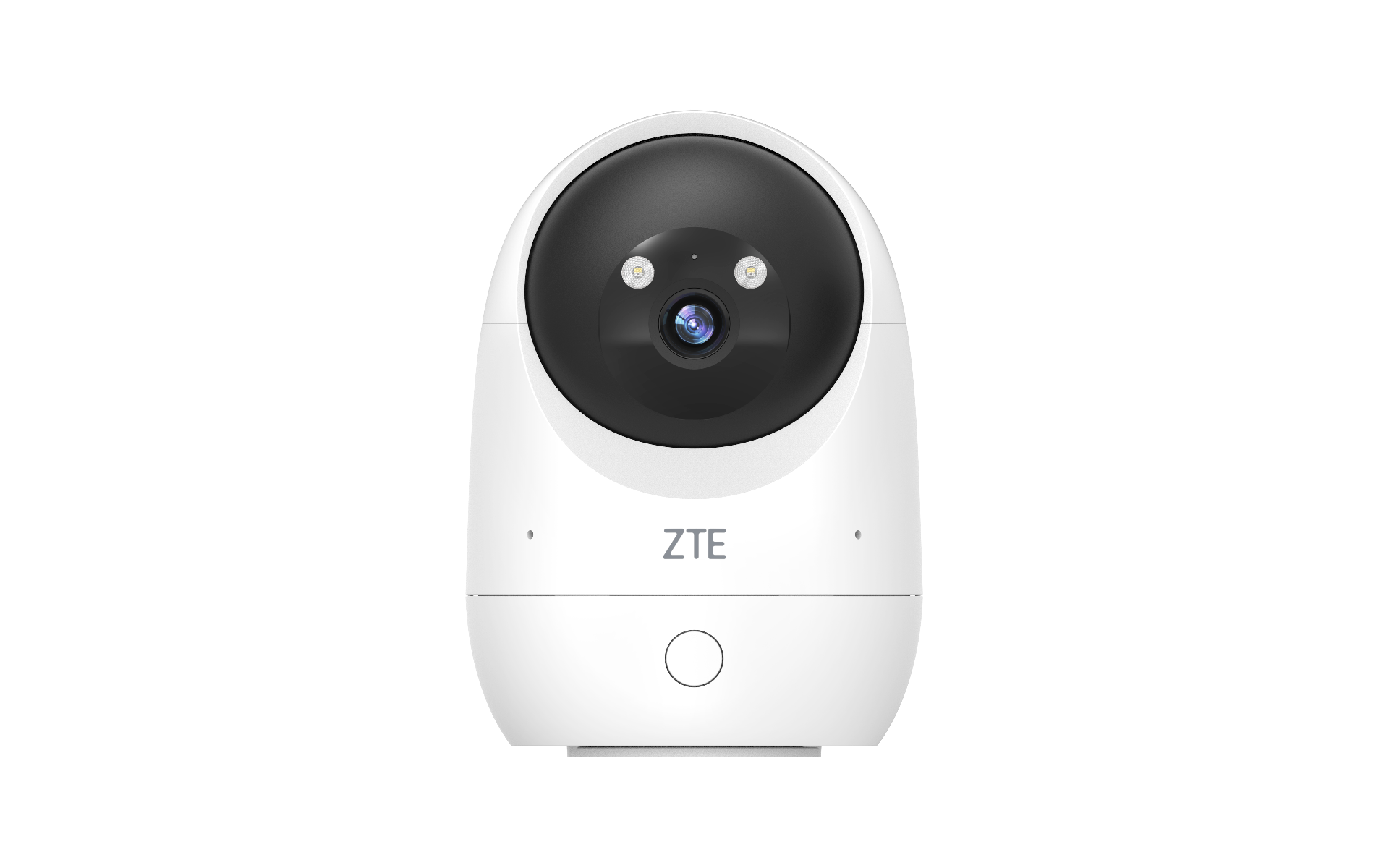

3MP Pan/Tilt AI Camera — ZXHN K534E

The ZXHN K534E AI IP Camera is designed to safeguard your home and family even when you’re away. Featuring a 3-megapixel PTZ (Pan-Tilt-Zoom) camera with H.265 encoding, it offers AI detection for humans, pets, motion, and crying sounds. Control every function—recording, and real-time notifications—remotely via your smartphone. With Wi-Fi 6, Bluetooth, live viewing, playback, and event alerts, this camera delivers next-gen home security.

Product Highlights

High Reliability
· The camera provides high performance, exceptional reliability, and straightforward management, with remote software upgrade support for customization.
· The power adapter offers 4kV lightning protection, while the Ethernet port is equipped with 2.5kV lightning protection and surge protection.
Easy Installation and Management
· Users can quick setup via ZLife APP with step-by-step guidance.
· Users can remote camera control and manage through the ZLife APP, while operators can perform maintenance via SCP platform.
Innovative Features
· Two-way audio
· One-click privacy mode
· One-click call
· Bluetooth/soft AP/QR code/LAN pairing
· Motion tracking
· Event alarm and notification
· Human & sound & motion & crying & pet & cross-line & area detection
· Pan/Tilt remote control
· Local and cloud storage, dual backup
· Dynamic digital bandwidth, 3D noise reduction
· Infrared & full-color night vision

Product Parameters

Image /Lens
1/3 inch CMOS image sensor
F2.0 aperture
355° Pan, 85° Tilt
33ft infrared & full-color night vision
Field of View: 94° (diagonal), 82° (horizontal), 42° (vertical)
Video
H.265 compression
2304 x 1296 @ 20 fps
Audio
Real-time two-way audio
AAC
1 x SPK, 1 x MIC
Storage
Cloud storage
Local storage: TF card/min SD (up to 512 GB)
Internet
Cable: 1 x FE (1 x RJ 45 10/100M)
Wi-Fi: 2.4GHz Wi-Fi (802.11b/g/n/ax)
Bluetooth 5.2
Protocol: RTP, RTSP, RTCP, ONVIF, IPv6
Dimensions (H x D x W) & Weight
125 x 90 x 90 mm
278g
Electrical Characteristics
Power adaptor: 5V/1A, Type C
Surge protection: Adaptor-4 kV (differential), 2 kV (common). LAN-2.5KV (differential)
Environmental
Operating temperature: -10℃ ~ 45℃
Operating humidity: <95% (No condensation)
