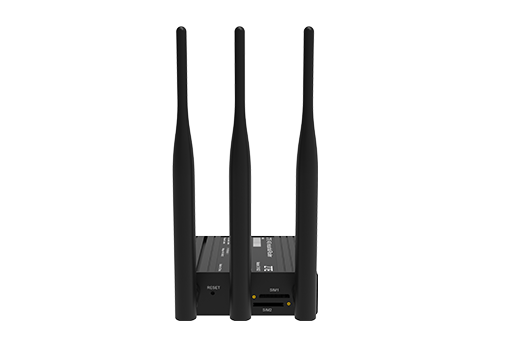

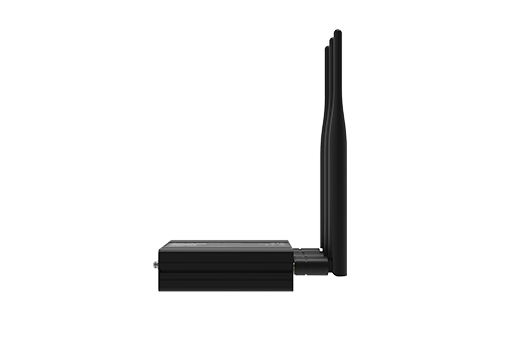

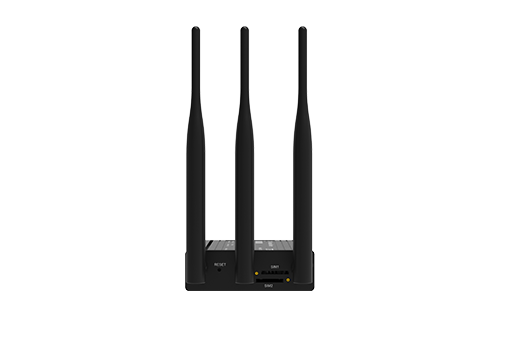

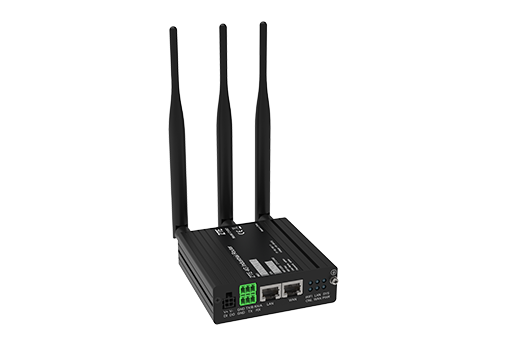

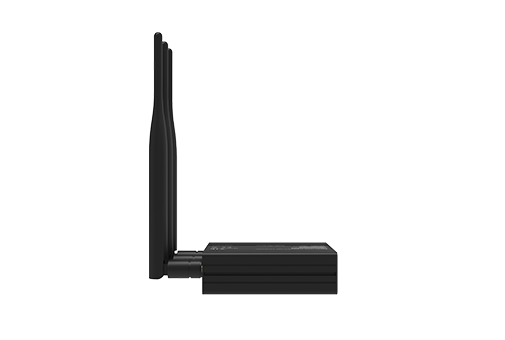

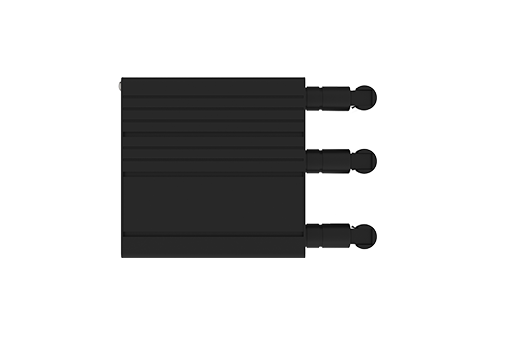

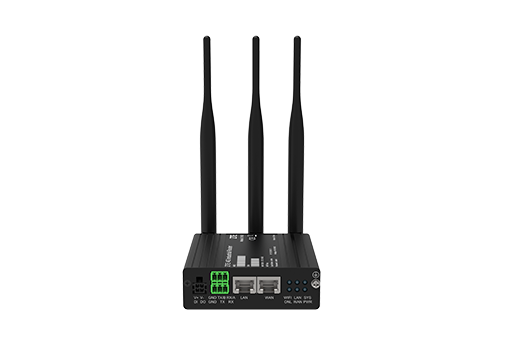

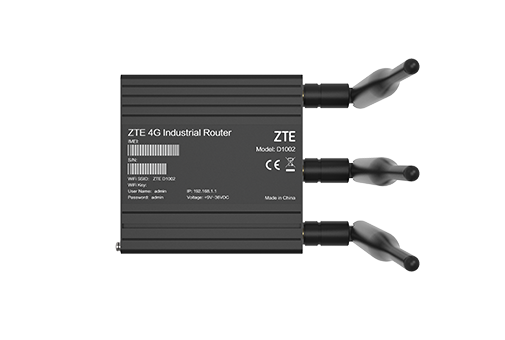

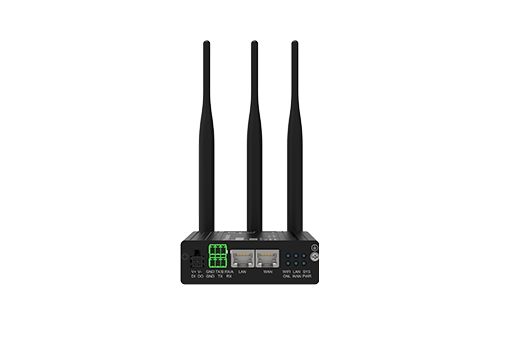

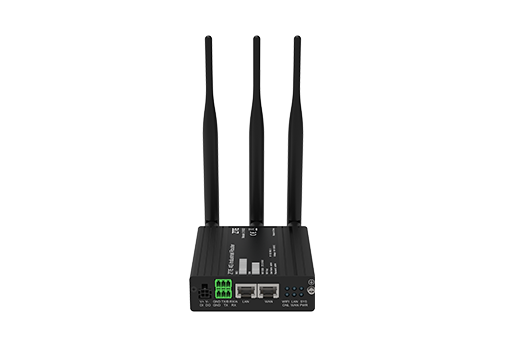

ZTE D1002 4G Industrial Router

The ZTE D1002 4G Industrial Router is a compact yet powerful device engineered to deliver stable and reliable connectivity in demanding industrial environments. With support for multiple communication protocols and interfaces, it is an ideal solution for industrial automation and IoT applications.

Product Highlights

Dual-SIM with Auto-Failover
·Dual SIM slots enable automatic switching between carrier networks for reliable connectivity.
Versatile Interfaces for Flexible Integration
·Equipped with multiple interfaces including RS485, RS232, and digital I/O for connecting various sensors and industrial equipment.
Multiple VPN Protocols for Secure Remote Access
·Supports multiple VPN protocols including IPsec, OpenVPN, and WireGuard for flexible, secure remote access and robust data encryption.
Integrated IoT Cloud Platform
·It enables intelligent, automated, and efficient enterprise-grade IoT operations and maintenance. In addition to the cloud management platform, the device also supports SSH, SMS, SNMP, TR-069 (ACS), MQTT, MODBUS and various other mature management solutions.
Flexible Power Supply with Broad Compatibility
·It offers versatile power supply options through a 4-PIN interface, ensuring compatibility with mainstream power accessories, installation kits, and antenna components used in industrial wireless routers, allowing users to easily build solutions with existing market accessories.

Product Parameters

Cellular Connectivity
LTE FDD: B1/3/5/7/8/20/28 TDD: B38/40/41
WCDMA B1/5/8
GSM/GPRS/EDGE 850/900/1800MHz
Wi-Fi
Standard and Band IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps(Maximum) IEEE802.11n: 144Mbps(Maximum)
Security Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power 15 ± 2dBm
Sensitivity < -72dBm @ 54Mbps
Hardware System
CPU Industrial-grade CPU
Flash 32MB, 128MB (Optional)
DDR2 128MB
Interfaces
WAN Interface; LAN Interface; Serial; LED Indicators(non-interface) I/O Port; Antenna Interface; SIM/UIM Slot; Power Interface; Reset Button
Power
Input Voltage DC 12V/1.5A
Accepted Range DC 9-36V
Power Consumption
Standby 95-135mA@12VDC
Communicating 180-360mA@12VDC
Physical Properties
Casing Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions 91.4×92.4×29mm (excluding antennas and mountings)
Weight 204.6g
Others
Operating Temperature -35~+75℃
Storage Temperature -40~+85℃
Relative Humidity 95% (non-condensing)
