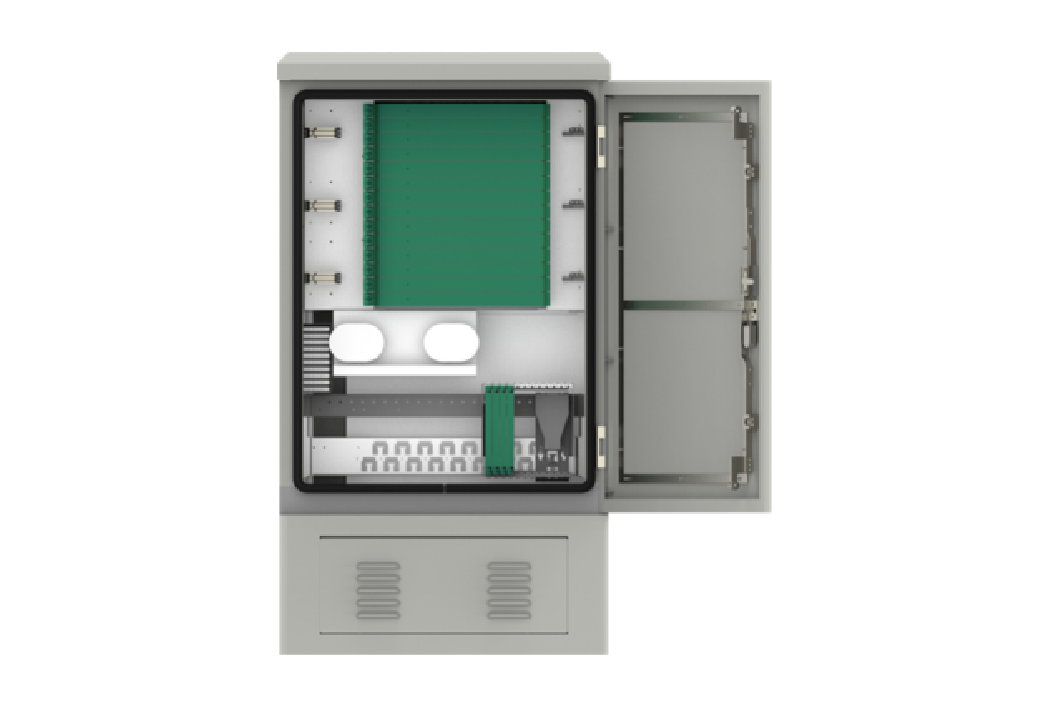

Optical Cross-Connection Cabinet — GXF378-OCC-TGSS-3A
The GXF378-OCC series are large-capacity stainless steel optical cross-connection cabinets (OCC) that suit the scenarios where fiber distribution points are deployed outdoors.
Language
Product Highlights
- · Enclosure made of double-layer homogeneous stainless steel sheets and plates filled with heat preservation materials to ensure outstanding heat isolation performance.
- · The intelligent parking position facilitates temporary fiber storage and protection of unused connections.
- · Sufficient splitter slots reserved inside of the cabinet have no impact on the splicing & distribution capacity.
Product Parameters
- Dimensions (H x W x D)
- 1460 x 740 x 570 mm
- Material
- Stainless steel
- IP rating
- IP55
- Mount mode
- Ground, concrete foundation
- Splicing capacity
- 672 cores
- Splicing & distribution tray
- 12/24 cores for each tray
- Splitter
- Box type
- Operating temperature
- -40℃ ~ +60℃
