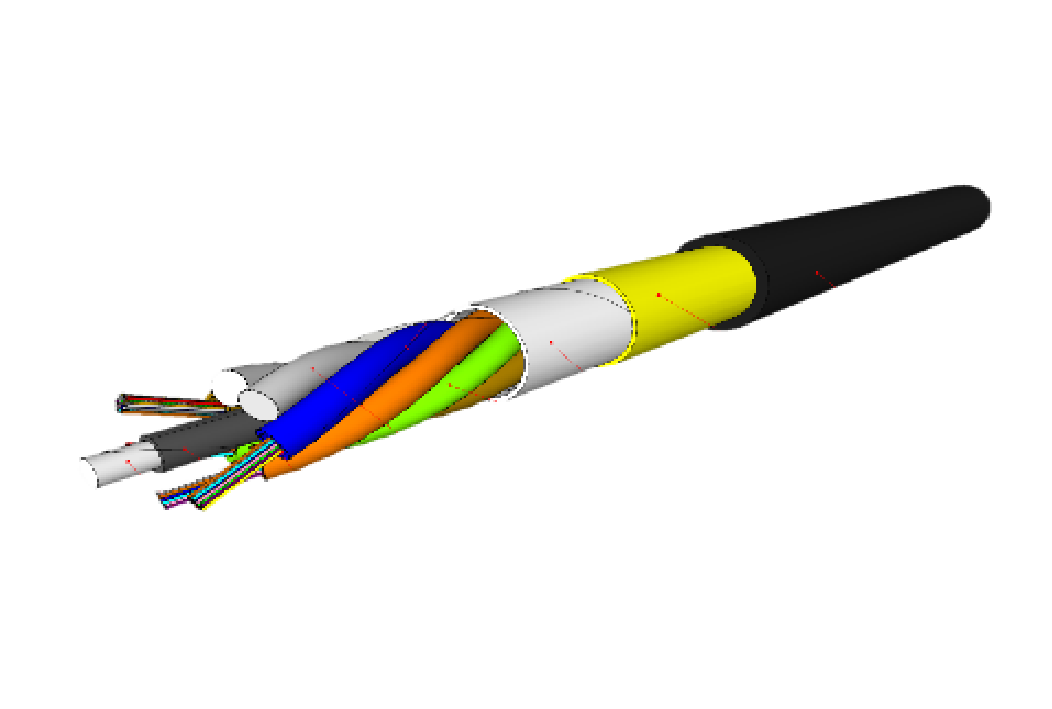

Optical Cable — ADSS-96G.652D
The ADSS (all-dielectric self-supporting) cable is designed for aerial cable installation and deployment, which is suitable for various outdoor applications.
Language

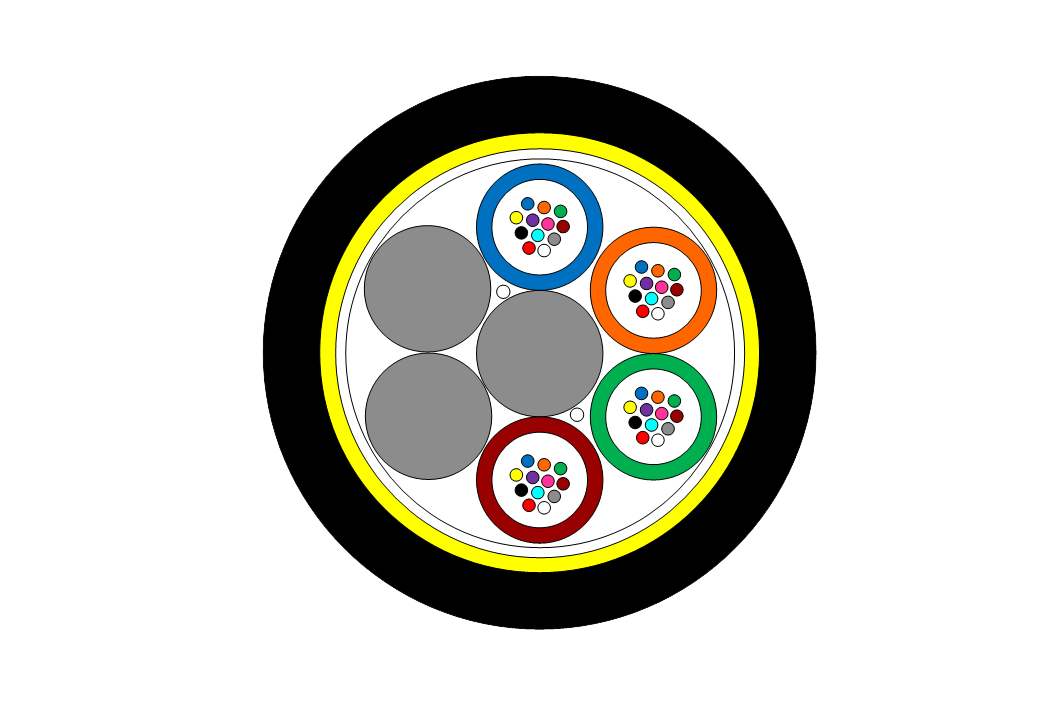

Product Highlights
- · Loose tube with gel filled
- · FRP central strength member
- · Water-blocking yarns and tape for semi-dry core
- · UV resistant PE outer sheath
Product Parameters
- Cladding diameter
- 125.0 ± 1.0 μm
- Core/cladding concentricity error
- ≤ 0.6 μm
- Coating/cladding concentricity error
- ≤ 12.0 μm
- Cladding non-circularity
- ≤ 1.0%
- Primary coating diameter (uncolored)
- 245 ± 7 μm
- Curl
- ≥ 4m
- Attenuation (increasing 0.01 dB/km after cabling)
- @1310 nm ≤ 0.36 dB/km
@1550 nm ≤ 0.22 dB/km
- Bending-loss performance
- 60 mm diameter, 100 turns, 1550 nm: Δ ≤ 0.05 dB
