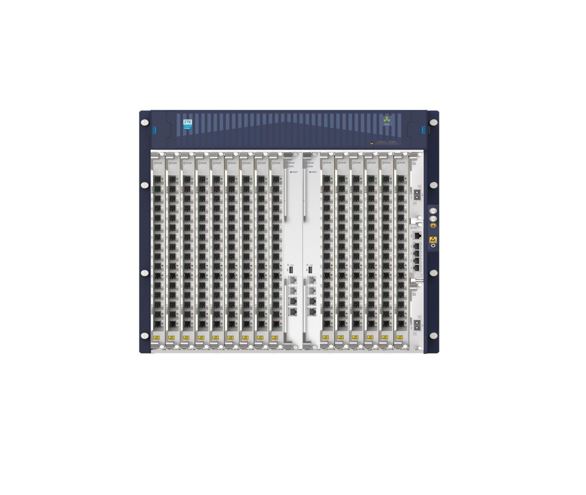

ZXA10 C600

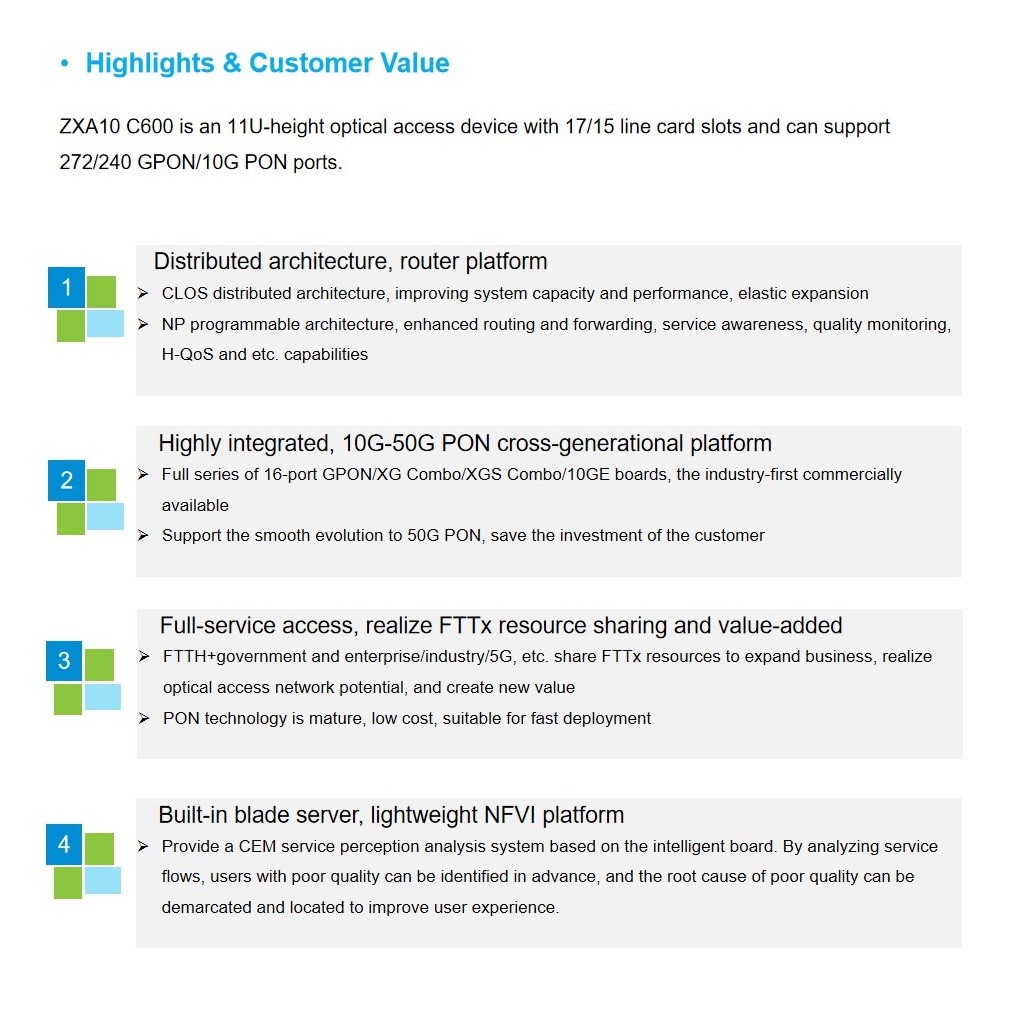

ZXA10 C600 is a large-capacity optical access platform, it has the leading-edge industrial design, state-of-the-art architecture, and full scenarios coverage. It has fully-distributed and programmable router architecture to support 4K/8K/VR , FMC, SDN/NFV/virtualization as well. ZXA10 C600 is 11U high optical access equipment, which has 17/15 line card slots and can support 272/240 GPON/10G PON ports.

State-of-the-art architecture meets future requirements

■High-end router architecture,fully supports L2/L3 functions.

■Fully-distributed, separated control & forwarding, load balancing.

■NP + CLOS architecture, easy for upgrade.

■SDN/NFV ready, oriented to network re-architecture.


Powerful capabilities, meet all application scenarios

■ 10 + FTTx access scenarios.

■ Undifferentiated access within 0 km to 30 km.

■ Suits the deployment in freezing, scorching, damp, and dry environmen.


Supports Combo PON, industry's first 3-in-1 combination

■ The WDM1r is embedded in the optical module without affecting existing GPON services.

■ Supports on-demand deployment of GPON and 10G PON ONUs according to service development.


Supports Any-PON, build 10G PON ready networks

■5-in-1 Card, flexible technologies switching and quick upgrade.

■On-demand migration, save investment.



Learn More

Product Parameter

Model Parameter
Uplink interface GE, 10GE, 100GE
Downlink interface GPON, XG(S)-PON, Combo PON, Any-pon, P2P
Dimensions 21" shelf: 486.1 mm* 535 mm * 288.5 mm; 19" shelf: 486.1 mm* 482.6 mm* 288.5 mm (H*W*D)
Weight 21" Empty shelf: 21 kg, full configuration: < 58 kg; 19" Empty shelf: 18 kg, full configuration: < 52 kg
Operating voltage -48 V (±20%), or -60 V (±20%)
Operating current ≤ 60 A
Operating temperature -40°C ~ +65°C, min. start-up temperature is -25°C
Operating relative humidity 5%-95%
Altitude ≤ 4000 m
Air pressure 70 kPa-106 kPa
