Product Overview
ZXA10 C600H

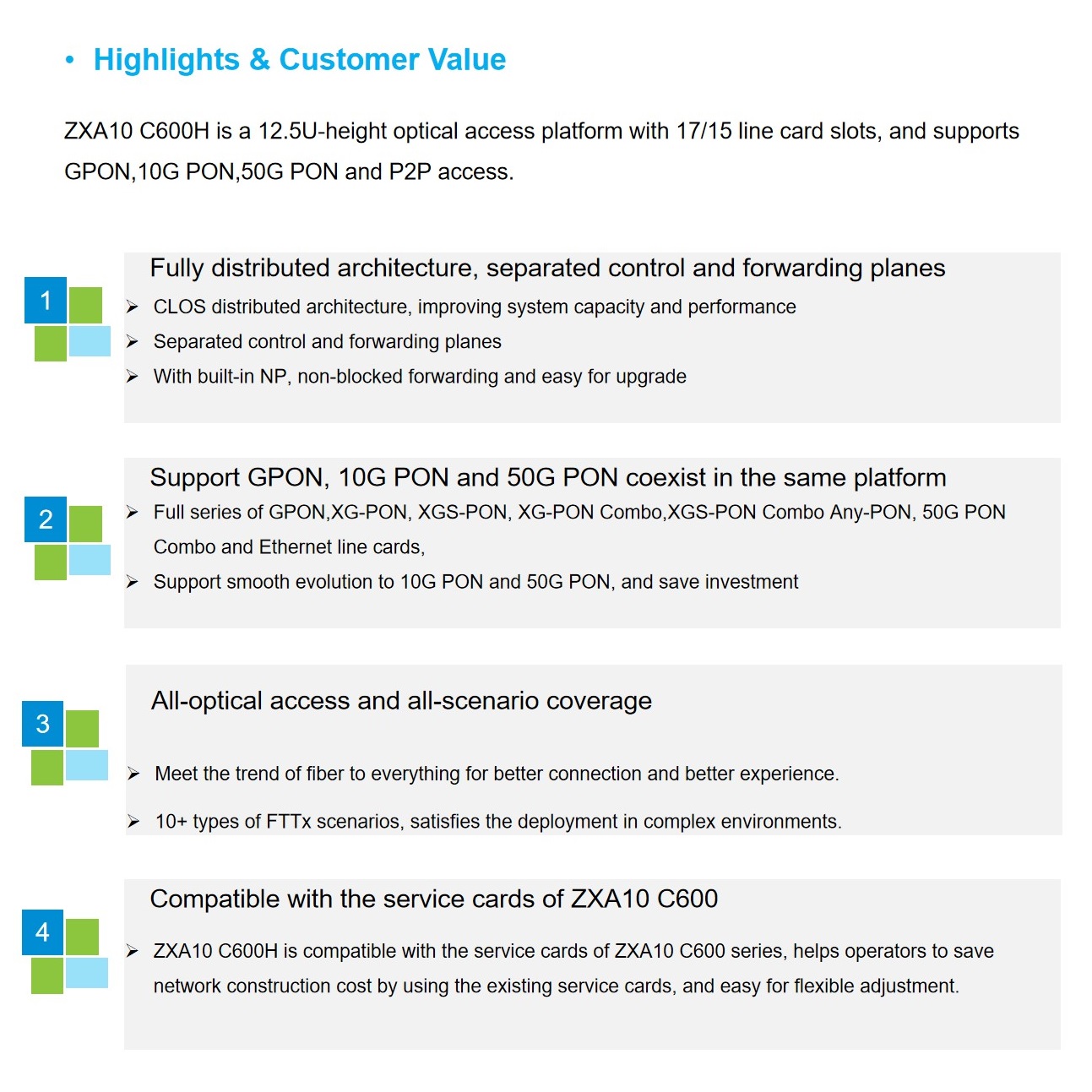

ZXA10 C600H is a large-capacity optical access OLT device based on the TITAN platform, meets the requirements of 50G PON massive deployment. It can meet the needs of ultra-high bandwidth access, 4k/8K big video and VR, 5G/4G backhaul, network reconstruction, and carrier-grade QoS and security guarantees.
Product Parameter
| Model | Parameter | |
|---|---|---|
| SNI | 100GE, 10GE, GE, etc | |
| UNI | PON: GPON, XG-PON, XGS-PON, 10G-EPON, XG-PON &GPON Combo, XGS-PON & GPON Combo, Any-PON, 50G PON&XG(S)-PON Combo, 50G PON&XG(S)-PON&GPON Combo, 50G PON&10G-EPON Combo, 50G PON&10G-EPON&EPON Combo, P2P: GE/FE, 10GE,etc. | |
| Dimensions | 21" chassis: 547 mm*5336 mm*288 mm; 19" chassis: 547 mm*482.6 mm*288 mm (H*W*D) | |
| Weight | 21" empty chassis: 25 kg; 19" empty chassis: 24 kg; Full configuration 21" chassis: < 66 kg; Full configuration 19" chassis: < 60 kg | |
| Work voltage | DC: -48V(+/-20%), -60V(+/-20%); -38.4V～-72V | |
| Work current | DC: 63A | |
| Work Temperature | -40°C ~ +65°C, min. start-up temperature is -25°C | |
| Work Humidity | 5%-95% | |
