1.High-Performance and High-Density Storage
■ Based on the latest Intel Purley platform
■ Supports 2 Intel Xeon Scalable processors
■ Provides 16 DIMM slots, supporting 2933MT DDR4 memory
■ With 4U-height, supports 38 2.5”/3.5” SAS/SATA hot-swap hard disks，four slots supports NVMe U.2 disks
2.High Reliability and High Scalability
■ Provides up to 8 non hot-swap PCIe 3.0 slots, supporting multiple types of interfaces
■ Intelligent cooling design, improving system reliability and effectively extend the life of parts
■ Hard disk, power and other key parts support hot swap. Users can replace and maintain parts without powering off, improving system availability.
■ Provides SAS HBA/RAID cards, supporting RAID 0, 1, 5, 6, 10, 50 and more, to provide multiple kinds of data protection schemes
■ Adopts redundant power module, supporting 1+1 redundancy
3.Convenient Management and Easy Maintenance
■ Monitors running status of CPU and memory in real time, manages system power and cooling, and supports to implement relevant configuration rapidly
■ Provides powerful iKVM function, and supports system management through Web mode
■ Supports IPMI2.0, to provide out-of-band management through the IPMI interface; provides RMCP + SNMP interface, to integrate with third-party management system; provides local management tool
4.Green, Energy Saving, Environmental Protection
■ Mute fan design: smart speed control, low power consumption, low noise
■ Real-time monitoring of system power consumption, convenient for customers to configure power of equipment room according to application situation
■ CPU intelligent frequency conversion, to adjust CPU working frequency per service pressure
■ Green and harmless, lead-free, environmental protection
■ Platinum power supply, reaching conversion efficiency up to 94%
5.Technical Specifications
|
Specifications
|

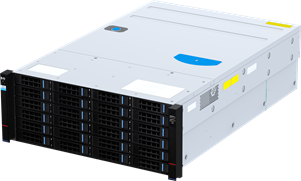

ZXCLOUD R5500 G4
|
|
Host Feature
|
|
Shape
|
4U
|
|
Processor
|
Supports 1/2 Intel Xeon Pruley Scalable processor
|
|
Memory slots
|
16* memory slots, supporting DDR4 memory bank
|
|
Hard disk controller
|
Supports 12Gb SAS HBA/RAID card, and supports RAID 0, 1, 5, 6, 10, 50 and more
|
|
Hard disk
|
36* 2.5” or 3.5”SAS/SATA hot-swap HDD/SSD,4 NVMe U.2 hard disks are supported.
2* 2.5”SAS/SATA hot-swap HDD/SSD
|
|
NIC
|
Integrated with 2 GE interface and 1 IPMI management GE interface
|
|
Display
|
Integrated graphics
|
|
I/O Module
|
|
|
PCIe slot
|
8 PCIe3.0 slots (1 non-standard slot), supporting multiple kinds of configuration
|
|
External device interface
|
4 USB 3.0 intefaces
2 GE ports
1 serial port
1 VGA interface
1 independent management GE port
|
|
OS
|
|
Compatible OS
|
Compatible with mainstream server OS, including but not limited:
Windows Server (x64)，RedHat Linux Enterprise，SUSE Linux Enterprise Server (x64)，Centos，CGSL，VMware ESXi，KYLIN, Oracle Linux
|
|
Physical Features
|
|
|
Power
|
Power: 550W/800W/1200W
AC: 100-240v/50~60Hz
HVDC: 240V/336V
LVDC: -48V
1+1 hot-swap redundancy power
|
|
Environmental condition
|
Working temperature: +5ºC～+40ºC
Storage temperature: -40ºC～+70ºC
Relative humidity: working environment 8%～90%, non working environment 5%～95%
Altitude: ≤3000m
|
|
Size
|
H (177mm) x W (433.6mm) x D (670mm)
|
|
Fan
|
8 hot-swap fans, supporting N+1 redundancy, and supporting dynamic smart speed control
|
|
Weight
|
Maximum 53.4kg
|
|
Certificate
|
FCC, CE, CCC, CEC, RoHS
|
