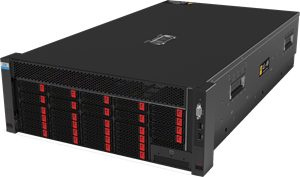

R8500 G4X Rack Server

  • R8500 G4X is a compute-intensive rack server oriented to the applications of key fields. It is based on the latest Intel Purley platform , and provides memory with ultra-large capacity and highspeed I/O interfaces. With lots of unique design and innovation of chip level, link level, module level and system level, R8500 G4X is featured in Reliability, Availability, and Scalability, fully meeting the rigor requirements of key field applications such as virtualization, large database, CRM, ERP and high-performance computing.


     1.High Density, High Performance
    ■ Support 4 INTEL® XEON® SCALABLE PROCESSORS(Cooper Lake), up to 28 processing cores.
    ■ 48 DDR4 DIMM slots, supports Intel Optane DC Persistent memory, maximum memory capacity of 12T (256GB DDR4 Memory).
    ■ Maximum 13 PCI‐E 3.0 slots, Configured with high-speed NIC, it provides users with strong numerical computing, graph and image processing and network communication capability.
    ■ Supports 2 GPU cards.
    ■ Supports the NVMe SSD with PCI-E 3.0 interface and NVME 2.5” hard disk.

    ■ Supports 28 2.5” SAS/SATA hard disks or 20 2.5”SAS/SATA hard disks + 8 NVME hard disks.



    2. High Availability, High Reliability, High Scalability

    ■ Provides Advanced RAS features (fault-tolerant capability) at chip level, link level, module level and system level, which comprehensively increases the system reliability.
    ■ Uses excellent heat dissipation design, to improve the system reliability, prolongs the service life of parts, and reduces the cost.
    ■ Key components such as hard disks, power modules, fans and PCIe cards support hot swapping. They can be replaced and maintained without powering off the system, which improves the system availability.

    ■ Supports hardware RAID and supports RAID 0, 1, 5, 6, 10, and 50 to provide users with a variety of data protection solutions.


    3. Convenient Management and Easy Maintenance
    ■ Supports out-of-band centralized management on server CPU, memory, hard disk and network resource capital through the management software with standard configuration.
    ■ Supports powerful KVMS function.
    ■ Supports IPMI2.0 and DCMI1.5, to provide out-of-band management through the IPMI interface, and provide the SNMP interface to integrate with third-party management system.

    ■ Uses the black box technology that collects the host processor register information, keeps reset and the scene of the outage through independent transmission channels and storage medium, to provide efficient means for fault locating and troubleshooting.



    4. Green, Energy-saving, Environmental
    ■ Efficient platinum power module, up to 94%, supporting N+1 or N+2 redundancy, supporting power capping function.
    ■ Smart speed control and quite fan design: low power consumption, low noise.
    ■ Smart CPU frequency conversion to adjust the CPU working frequency according to the service pressure.

    ■ Green, lead free, and environmental protection.



    5. Technical Specifications

    Specification

    R8500 G4X

    Host Features

    Form

    4U

    Processor

    4 INTEL® XEON® SCALABLE PROCESSORS(Cooper Lake)

    PCH

    Lewisburg C621A S2

    Memory

    48 DDR4 memory slots

    Hard disk controller

    Standard PCIe  RAID card, supports RAID 0/1/10/5/6/50/60 function

    CD-ROM

    Integrated DVD-ROM

    Hard disk

    Shelf① supports 28 2.5” SAS/SATA hard disks or 20 2.5” SAS/SATA hard disks + 8 NVME hard disks

    Shelf② supports 8 2.5” SAS/SATA hard disks + 8 NVME hard disks

    Shelf③ Supports 8 2.5” SAS/SATA hard disks

    Support 2 * M.2 SSD

    NIC

    Integrated with 2 GE ports (RJ45) and 2 10GE fiber ports

    Display

    Integrated graphics

    IO Module

    PCIe slot

    13 PCI‐E 3.0 slots, supports various configurations

    Peripheral device interface

    4 USB 3.0 ports, 2 USB2.0 ports;

    2 GE ports (RJ45);

    2 10GE fiber ports;

    1 serial port;

    2 VGA ports (1 front, 1 rear);

    1 independent management network port

    Physical features

    Power supply

    Platinum power, 550W, 800W, 1200W;

    AC 100-240v/50~60Hz input, 240V, 336V HVDC;

    N+N hot-swappable redundant power

    Environment condition (temperature and humidity)

     working temperature: +5ºC~+40ºC

    Storage temperature: -40ºC~+65ºC

    Relative humidity: working environment 8%~90%

    Altitude: 3000m

    Size

    H (175  mm) x W (442mm) x D (790mm)

    Fan

    8 hot-swappable fans, N+1 redundancy, dynamic smart speed control

    Weight

    ≤55kg (full configuration)

    OS

    Compatible OS

    Microsoft Windows Server

    Red Hat Enterprise Linux

    SUSE Linux Enterprise Server

    CentOS

    ZTE CGSL

    VMware

    RedFlag

    NeoKylin

    Oracle Linux
