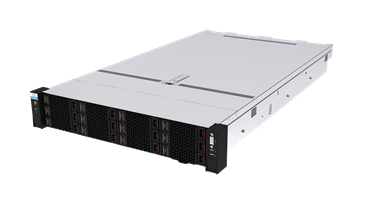

R5350 G4 Rack Server

  • R5350 G4 rack server is the enterprise-class general rack server developed by ZTE based on AMD Rome/Milan series high-performance processor. It adopts a secure and reliable software and hardware system, features multiple cores, high throughput, strong single-thread capability, high integer computing performance, high access and IO channel bandwidth. It is the high-performance server for enterprise-class applications and data centers. As a high-performance, secure and reliable storage platform, the R5350 G4 server can provide excellent Total Cost of Ownership (TCO) for cloud computing, big data analysis and software-defined data center, easily dealing with low-latency and data-intensive workload.

    1. High performance, high density
    ■ It adopts the high-performance AMD Rome/Milan processor.
    ■ In dual-channel mode, a maximum of 128 physical cores are supported, maximizing the number of VM instances and meeting the requirements of cloud computing deployment.
    ■ It has the high memory bandwidth design capability, supporting 32 DDR4-3200 memory bars and accelerating the performance of memory-intensive applications

    ■ It supports a maximum of 16 NVMe U.2 hard disks and provides high-speed IO interfaces to solve the bottleneck of slow access to traditional hard disks.


    2. High scalability
    ■ It supports multiple storage configurations and large storage configurations and a maximum of 33 hot-swappable hard disks.
    ■ It can expand 12 PCIe slots to meet flexible expansion requirements such as network and storage control.

    ■ It supports up to two dual-width GPU cards, providing powerful heterogeneous computing capabilities.


    3. Convenient management and easy maintenance
    ■ It comprehensively monitors the system health to enable the monitoring and diagnosis of core components.
    ■ It supports automatic deployment, firmware upgrade, and remote operations to improve deployment and O&M efficiency.

    ■ It provides enterprise-level management function and reliability, automatic equipment attendance, real-time monitoring of core components, and classified fault streamline reporting, to provide comprehensive guarantee for the operation and maintenance of the data center.


    4. Green, energy saving, environment protection
    ■ It adopts 80 PLUS high-energy-efficiency power modules, and supports high-voltage DC and low-voltage DC technologies to provide energy utilization.
    ■ High-efficiency fans are used. With the same heat dissipation capability, the power consumption is lower.
    ■ The fans support intelligent speed adjustment and the silent design.

    ■ Lead-free design, green and environmental protection.


    5. Technical specifications

    Item

     R5350 G4

    Host Features

    Form

    2U

    Adaptable cabinet

    19 inches ≧1,000m-deep cabinet

    Processor

    1/2 Rome/Milan series processors. Each supports at most 64 cores, and the main frequency can reach up to 3.9GHz.

    Memory slot

       32 DDR4-3200 RDIMM or LRDIMM memory slots. Its memory capacity can reach up to 8TB.

    Hard disk controller

    Supports standard and self-developed storage HBA and Raid cards, and SAS3.0/SATA3.0/PCIe3.0

    Hard disk

    Provides multiple front storage bay configurations, supports the hot swappable mode, and supports HDD and SSD:

          8x2.5”bays, supporting SAS/SATA/U.2

         16x2.5”bays, supporting SAS/SATA/U.2

         24x2.5”bays, supporting SAS/SATA/U.2

         25x2.5”bays, supporting SAS/SATA, among which 8 bays support U.2

         12x3.5”bays, supporting SAS/SATA/U.2

    Provides multiple rear storage module configurations in multiple-option mode. It supports hot swappable mode, and supports HDD and SSD.

         2x2.5”bays, supporting SAS/SATA/U.2 and supporting at most 4 hard disks.

         2x3.5”bays, supporting SAS/SATA/U.2 and supporting at most 4 hard disks.

    Every type of machine has two built-in M.2 slots. The server supports PCIe SSD at the same time.

    GPU

    Integrates the display controllers, with the resolution of up to 1920x1080

    System management

    The Web provides Chinese management interfaces and supports IPMI2.0 and KVM Over IP.

    IO module

    PCIe slot

    Can expand up to 12 PCIe slots (containing one  RAID-card-oriented slots and one OCP slots) .

    Peripheral interface

    4 USB interfaces (2 rear USB3.0/USB2.0 devices and 2 front USB2.0 devices)

    2 VGA interfaces (1 for front end, and 1 for rear end)

    1 RJ45 serial port

    3 GE electric ports (2 service GE interfaces, 1 IPMI GE management interface)

    Physical features

    Power

    2 CRPS standard power, supporting the hot swappable mode and supporting the 1+1 redundancy mode

    Platinum power, providing multiple specifications such as 550W, 800W and 1,200W

    Supporting multiple power supply models: 110/220VAC, -48VDC, 240VDC, 336VDC for power supply

    Environment condition

    Working temperature: 5℃~40℃

    Storage temperature: -40℃~65℃

    Working humidity: 8%~90% RH, without gel

    Transportation storage humidity: 5%~95% RH, without condensation

    Altitude: 3,000m

    System size

    19–inch rack

    Chassis size: 432mm x 87.6mm x 780mm (W*H*D), without side ears or slide guides

    Fan

    4 pluggable redundant middle fans, supporting dynamic intelligent fan speed adjustment heat dissipation system

    Weight

    Less than 40kg with full configuration (without slide guides)

    Certificate

    CCC, CQC, RoHS

    OS

    Compatible OS

    NewStart CGSL, Microsoft Windows Server, Suse, Redhat, Centos, VMWare ESXI, Kylin, RedFlag, Oracle Linux

    For specific supported OS versions, refer to the server compatibility list.
