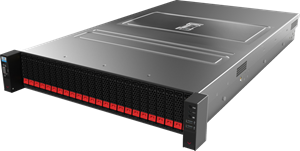

R5300 G4 Rack Server

  • ZXCLOUD R5300 G4 is ZTE’s new generation 2U 2-socket rack server, supporting latest Intel® Xeon® Scalable Processors. R5300 G4 uses high-density, modular design, providing high performance, high reliability, high scalability, easy management and other features, widely applicable to Internet, cloud computing, big data, NFV, SDN and other fields.

    R5300 G4 has been verified by Intel as an Intel® Select Solutions for NFVI Solution.

    1.High Performance and High Density

    ■ Uses 2 Intel® Xeon® Scalable Processors; one processor  have up to 28 cores

    ■ Supports 24 DDR4 memory slots. The maximum rate of its memory can reach 2933MT/S

    ■ Supports to configure high-performance NVMe SSD to provide high-speed I/O performance


    2.High Scalability and High Bandwidth

    ■ Supports up to  32 2.5” hard disks

    ■ Provides 12 NVMe U.2 SSD slots to solve the bottleneck of slow hard disk accessing in the traditional solution.

    ■ Provides a variety of hard disk frames and RAID cards to flexibly configure local storage according to service requirements.

    ■ Supports up to 10 PCIe3.0 expansion slots, supports two GPU cards, to provide powerful computing capability


    3.High Availability and High Reliability

    ■ Excellent heat dissipation design is adopted to improve the reliability of the system while prolonging the life of components and reducing the cost

    ■ Key components use redundancy design, hard disk, power supply and fan support hot plug, to improve the availability of the system

    ■ Supports RAID, 0, 1, 5, 6, 10, 50, 60, to provide a variety of data protection program

    ■ Power module adopts 1+1 redundancy mode


    4.Convenient Management and Easy Maintenance

    ■ Supports WEB mode with external centralized management, to achieve CPU, memory, hard disk, fan, power, network and other resources management monitoring

    ■ Supports powerful KVM capabilities

    ■ Supports IPMI2.0, Redfish, SNMP,DCMI1.5, and can be integrated with third-party management system


    5.Green, Energy Conservation and Environmental Protection

    ■ Uses platinum power module, the conversion efficiency is as high as 94%, supports power capping

    ■ Intelligent speed regulation and mute design of fan

    ■ Intelligent CPU frequency conversion: according to the service pressure, to intelligently adjust CPU work frequency

    ■ Green, lead free, and environmental protection.


    6.Technical Specifications

    Specifications

    R5300 G4

    Host Features

    Form

    2U

    Processor

    2×Intel® Xeon® Scalable Processors

    Chipset

    Lewisburg PCH

    Memory

    Supports 24 DDR4 memory slots. The maximum rate of its memory can reach 2933MT/S

    Hard disk controller

    RAID card for optional configuration, supports RAID 0/1/5/6/10/50/60, supports power down protection

    Local storage

    Front storage configuration:

    8*   2.5” SAS/SATA HDDs/SSDs, hot-swappable

    12* 3.5” / 2.5” SAS/SATA HDDs/SSDs or NVMe SSDs, hot-swappable

    24* 2.5” SAS/SATA HDDs/SSDs, supporting 12 NVMe SSDs, hot-swappable

    Rear storage configuration:

    2* 2.5” SAS/SATA HDDs/SSDs, hot-swappable

    4* 3.5”/2.5” SAS/SATA HDDs/SSDs, hot-swappable (optional)

    Inbuilt memory configuration:

    2* 2.5” SATA SSDs (optional)

    Inbuilt dual-SD cards (optional)

    Inbuilt 2* M.2  SSDs  (optional)

    Display

    Integrated graphics(32M)

    Operating System

    Compatible OS

    Microsoft Windows Sever

    Red Hat Enterprise Linux

    SUSE Linux Enterprise Server

    CentOS

    VMware ESXi

    ZTE CGSL

    Red Flag Asianux server

    Oracle Linux

    IO Module

    Network Resource

    2* 10GE optical ports + 2* GE copper ports, supporting NCSI

    PCIe slot

    Up to 10* PCIe3.0 expansion slots, 2* GPU cards

    Peripheral interface

    6* USB ports (4* rear USB3.0, 2* front USB2.0)

    1* serial port

    1* front VGA port + 1* rear VGA port

    1* independent management Ethernet port

    Physical Features

    Power

    Platinum power supply of 550W, 800W and 1200W in 1+1 hot-swap redundancy mode

    Supports 110VAC, 220VAC, -48VDC, 240V HVDC, 336V HVDC

    Working environment (including temperature and humidity)

    Working temperature: +5ºC~+40ºC

    Storage temperature: -40ºC~+70ºC

    Relative humidity: working 10%~90%, non working 5%~95%

    Altitude: ≤3000M

    Dimension

    H (88.1 mm) x W (447mm) x D (752mm)

    Fan

    6* fans (N+1 redundancy mode), supporting the cooling system with dynamic smart fan speed control

    Weight

    About 30kg (full configuration)

    Certificates

    CE, CB, ETL, FCC, CCC, CEC, CQC,  RohS
