Product Overview

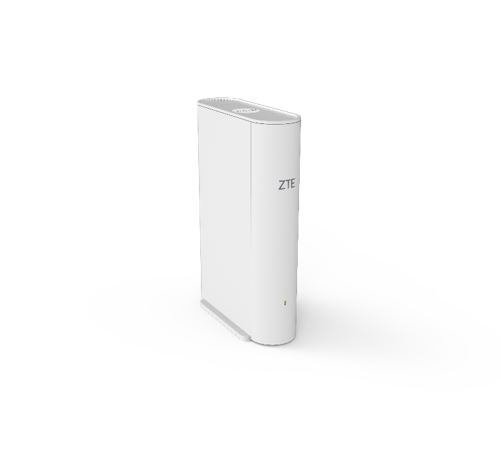

ZXHN H3601P is an AX3000 dual-band Wi-Fi AP/Extender.



ZXHN H3601P is an advanced home gateway that supports 3000Mbps Dual-band concurrent 11ax Wi-Fi, supporting 160MHz@5GHz.


ZXHN H3601P complies with the EasyMesh standard to provide whole home Wi-Fi coverage. With its ultra-high Wi-Fi speed and optimized QoS, this device brings you the ultimate Wi-Fi experience.



Product Parameter

Model Parameter
LAN 2xGE; 2x2 802.11b/g/n/ax Wi-Fi @2.4GHz; 2x2 802.11a/n/ac/ax Wi-Fi @5GHz
Buttons Reset, WPS
LEDs Status (red, green and blue)
Power Supply 12V DC, 1.0A
Dimensions 184 mm*125 mm*70 mm (W*D*H)
Net Weight 500g
Operating Temperature 0°C - 40°C
Humidity 5% - 95%
Certification CE; Wi-Fi 6; EasyMesh
