Product Overview

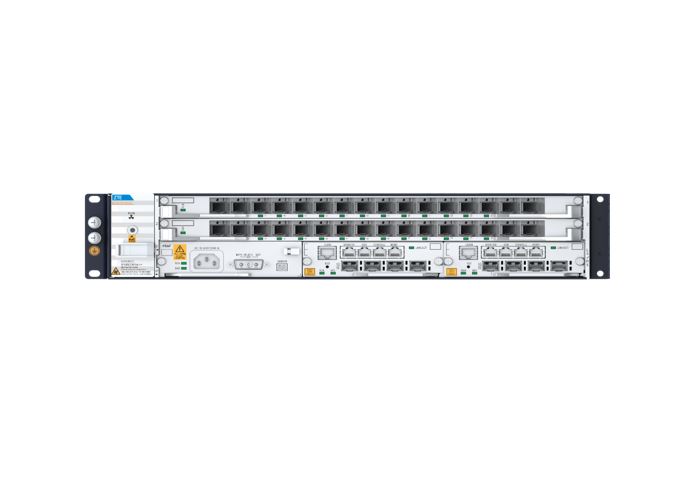

ZXA10 C620

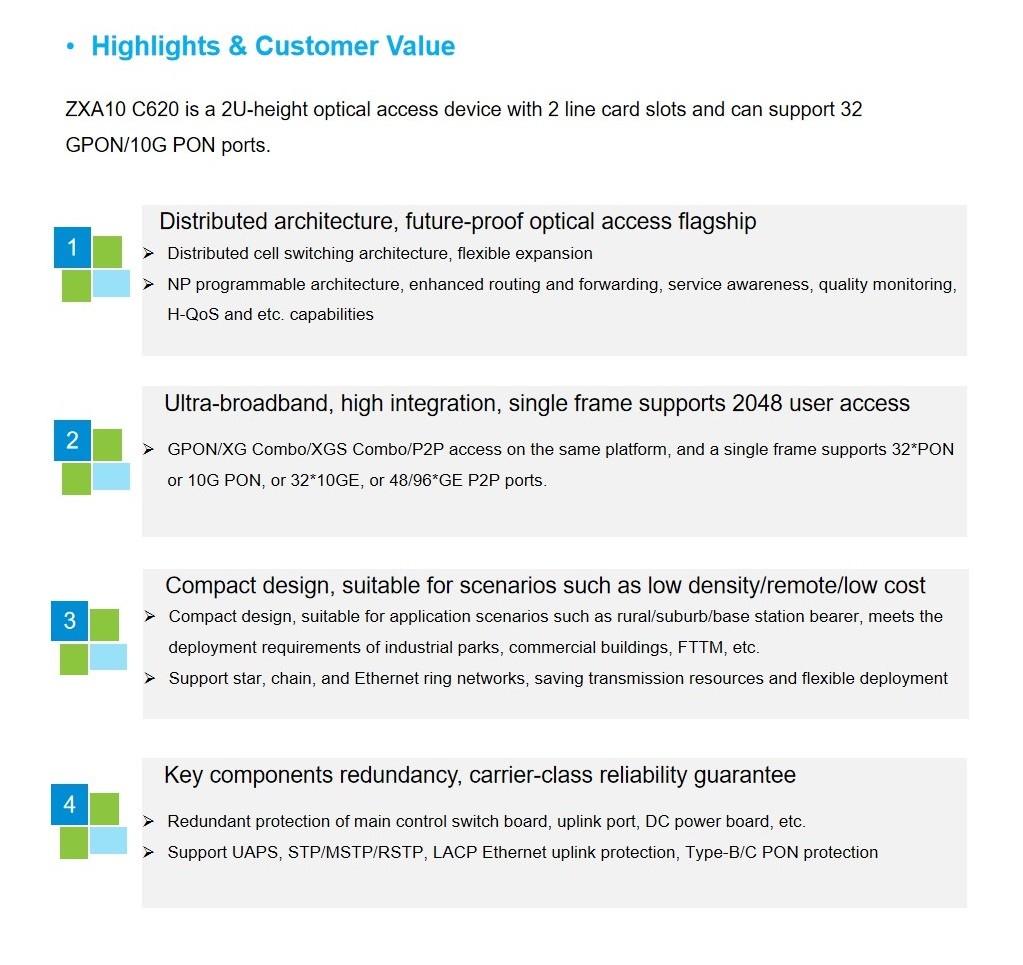

ZXA10 C620 is a small-capacity optical access platform, it is compact design, has the leading-edge industrial design, state-of-the-art architecture, and full scenarios coverage. It has fully-distributed and programmable router architecture to support 4K/8K/VR , FMC, SDN/NFV/virtualization as well. ZXA10 C620 is 2U high with 19"chassis.
State-of-the-art architecture meets future requirements
■ High-end router architecture,fully supports L2/L3 functions.
■ Fully-distributed, separated control & forwarding, load balancing.
■ NP + CLOS architecture, easy for upgrade.
■ SDN/NFV ready, oriented to network re-architecture.
Powerful capabilities, meet all application scenarios
■ Meet low-density, remote coverage and limited room space scenarios.
■ Suits the deployment in freezing, scorching, damp, and dry environmen.
Supports Combo PON, industry's first 3-in-1 combination
■ The WDM1r is embedded in the optical module without affecting existing GPON services.
■ Supports on-demand deployment of GPON and 10G PON ONUs according to service development.
Supports Any-PON, build 10G PON ready networks
■ 5-in-1 Card, flexible technologies switching and quick upgrade.
■ On-demand migration, save investment.
Product Parameter
| Model | Parameter | |
|---|---|---|
| Uplink interface | GE, 10GE | |
| Downlink interface | GPON, XG(S)-PON, Combo PON, Any-pon, P2P | |
| Dimensions | 88.1 mm*482.6 mm*283.5 mm (H*W*D) | |
| Weight | Empty shelf: 3.93 kg；Full configuration: <13 kg | |
| Operating voltage | -48V or -60V DC, 220V/110V AC | |
| Operating current | ≤ 15 A | |
| Operating temperature | -40°C ~ +65°C, min. start-up temperature is -25°C | |
| Operating relative humidity | 5%-95% | |
| Altitude | ≤ 4000 m | |
| Air pressure | 70 kPa-106 kPa | |
