Product Overview
E-band Products

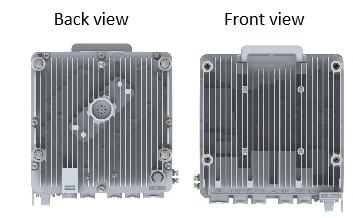

ZXMW ER2020E/H are designed based on ZTE's latest digital E-band transmission platform, support built-in Wi-Fi module, MPLS, IP routing, Segment Routing and SDN. They work on (71-76) / (81-86)GHz frequency band, with 62.5/125/250/500/750/1000/1500/2000 MHz (ETSI) channel spacing. 10 levels of coding & modulation (from 1/4 BW BPSK to 1024QAM) with ACM & AMB functionality provides high throughput and good avaiability.
• Easy Deployment: All-outdoor design, zero footprint installation; Both PoE and DC power supply are supported.
• High Capacity: 10 Gbps per channel, 20Gbps with XPIC. When combining with normal band microwave links (MBL), 20Gbps+ capacity can be reached.
• Long Distance: Industrial leading Tx power provide longer link distance - max. 22dBm Tx. power on ER2020E, Max. 26dBm on ER2020H. MBS technique makes big size antenna avaiable for long distance links.
• Rich Interfaces: 1xGE (e) with PoE + 1xGE (e) + 1x10GE (o)/25GE (o)/eCPRI + 3xGE (o)/10GE(o) /eCPRI，suitable for acces and aggregation scenario.
