Product Overview

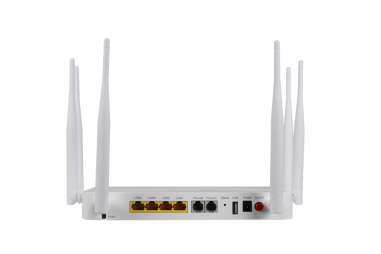

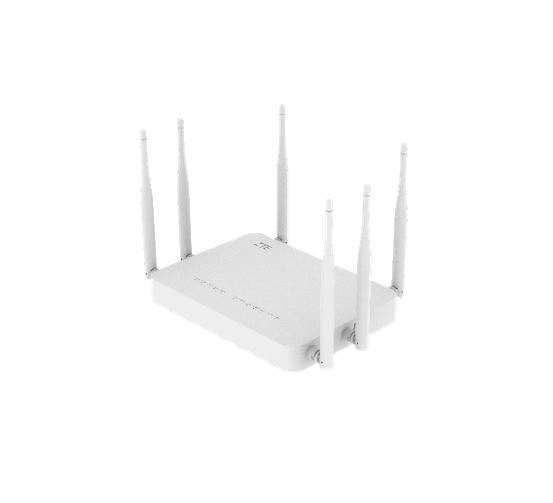

ZXHN F680
The ZXHN F680 is an AC2100 dual band Gigabit Premium triple-play GPON gateway.
The ZXHN F680 comes with four Gigabit Ethernet LAN ports, two phone ports, one USB2.0 and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2x2 over 802.11n and 5GHz 4x4 over 802.11ac. Excellent Wi-Fi performance allow the customer to web surf or watch the video, play the online game with better experience.
Learn more
Product Parameter
| Model | Parameter | |
|---|---|---|
| WAN | GPON | |
| LAN | 2x2 11n@2.4GHz+ 4x4 11ac@5GHz; 4*GE; 2*FXS; 1*USB | |
| LEDs | Power, PON, LOS, Internet, USB, LAN1, LAN2, LAN3, LAN4, Phone1, Phone2, Wi-Fi, WPS | |
| Electrical | AC adapter: 12 V DC | |
| Buttons | On/Off, Reset, WPS, Wi-Fi | |
| Net weight | <450g | |
| Dimensions | 220 mm*160 mm*32 mm (Not including antenna) (W*H*D) | |
| Humidity | 5% ~ 95% (non-condensing) | |
| Operating temperature | 0 °C~ 40°C | |
| Certification | CE certification；EasyMesh certification | |
