Product Overview

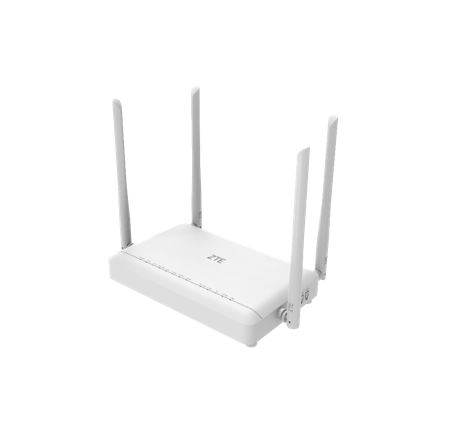

ZXHN F6600P is an AX3000 dual-band Wi-Fi 6 GPON gateway.




The ZXHN F6600P is an AX3000 dual-band triple-play GPON gateway, supporting 160MHz@5GHz. It comes with four GE LAN ports and one phone port. MU-MIMO and OFDMA technologies sharply improve efficiency of the Wi-Fi network. Excellent Wi-Fi performance allows customers to better surf the web, watch videos and play online games.





Product Parameter

Model Parameter
LAN 4xGE,1xFXS,1xUSB; 2x2 802.11b/g/n/ax Wi-Fi @2.4GHz; 2x2 802.11a/n/ac/ax Wi-Fi @5GHz
Buttons Reset, On/Off, WPS, Wi-Fi
LEDs Power, PON, LOS, Internet, Phone, LAN1-4, 2.4G, 5G, WPS, USB
Power Supply 12V DC, 1.5A
Dimensions 130 mm*35 mm*210 mm (W*D*H)
Operating Temperature 0°C - 40°C
Humidity 5% - 95%
Certification CE; Wi-Fi; RoHS
