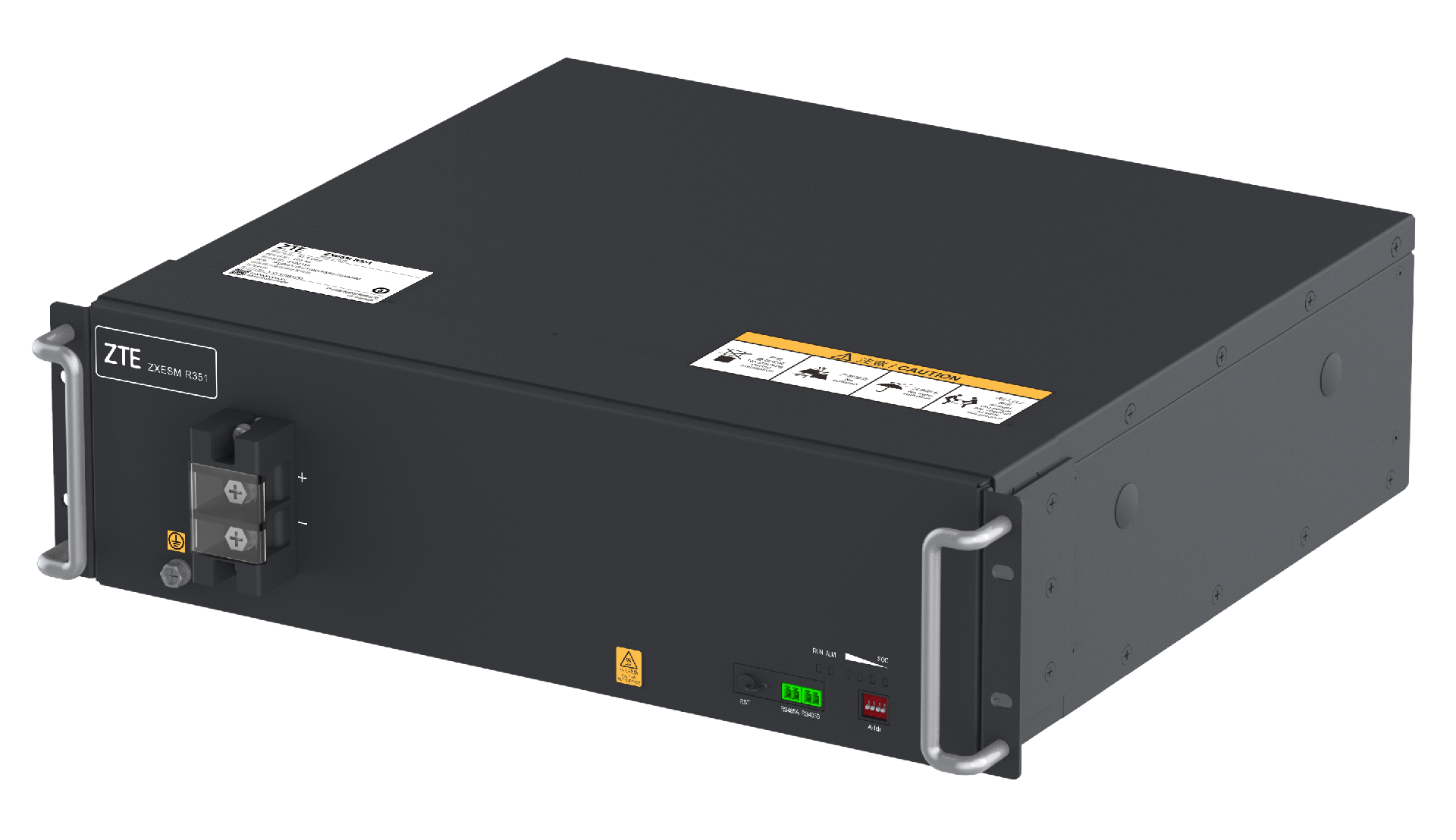

ZXESM R351 Lithium-ion Battery
ZXESM R351 applies the advanced control management theory to its BMS system to implement real-time parameter detection, over-current/over-voltage protection, and multiple groups of parallel operation. With Lithium battery- Power -EMS structure，which is connected to the power supply system and EMS，the battery is upgraded from a dumb device to a remotely controllable management unit to ensure the safety of sites power backup and reduce routine O&M costs.
Product Features
■ 3U height
■ Supporting 19 "rack or cabinet installation
■ Maximum charging and discharging current: 100 A
■ Supporting parallel operation of up to 16 sets of batteries
Product Parameter
| Model | Parameter | |
|---|---|---|
| Rated capacity | 100Ah(C5,25℃） | |
| Nominal voltage | 48V | |
| Cathode material | LiFePO4 | |
| Charge voltage | 52.5Vdc~54Vdc | |
| Max. charge/discharge current | 100A/100A | |
| Operating temperature | charging: 0℃~55℃, discharging: -20℃~+55℃ | |
| Storage temperature | 0℃~+40℃ | |
| Dimensions(W*D*H mm) | 442×400×130.5(excluding mounting ear, handle, terminal) | |
| Net weight | ≤43kg | |
| Self discharge@25℃ | ≤5%（90 days storage） | |
| Altitude | 0m~4000m | |
| Relative humidity | 5%RH~95%RH | |
| Atmospheric pressure | 70kPa~106kPa | |
| Protection grade | IP40 | |
| Design life | 15 years(25℃) | |
| Max. quantity of parallel connection | 16 | |
| Communication protocol | Modbus | |
