Product Overview

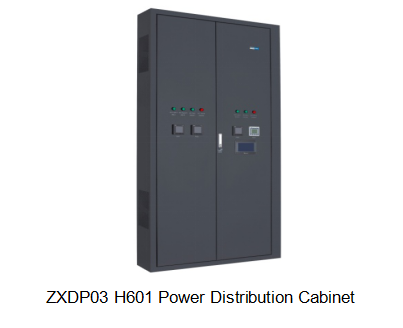

Power Distribution Cabinet
ZTE Power Distribution Cabinet ZXDP03 H601 collects all the data and uploaded to the monitoring system, in order to achieve real-time monitoring of the power distribution system and the effective management of operation quality with the functions of power distribution, information acquisition, failure alarm indicator, etc.
Product Features
- High reliability
Support hot plug and easy to expand
Insulation detection function
- High availability
AC transformer open circuit protection function，ensure the safety of maintainer and realize fast maintenance
One single AC detection board supports detection of one main loop and 36 branches loops at the same time, achieving high space utilization
Modular design of distribution unit and detection unit for convenient expansionary and maintenance
- Intelligent
7 inch LCD, compatible with ZTE iDCIM data center management platform, realizing comprehensive monitoring
Monitor interface graphically and display all switch state of input and output
Measure the total power consumption, IT power consumption and measure PUE function is optional
Learn more
Product_Parameter
| Model | Parameter(Operator) | Parameter(Enterprise) |
|---|---|---|
| Model | ZXDP03 H601 | |
| AC+DC Power Distribution Cabinet Input switch | Optional: 160A/250A/400A/630A | |
| DC Power Distribution Cabinet Dimensions (mm) (H*W*D) | 2500\2200\2000×1200×300\400\600 | |
| DC Power Distribution Cabinet Output switch | 10A/16A/25A/32A/40A/63A(2P) | |
| DC Power Distribution Cabinet Input switch | Optional: 160A/250A/400A/630A | |
| Lightning protection level | C level | |
| Cabling | Top | |
| IP level | IP20 | |
| Working temperature | -10℃~50℃ | |
| AC+DC Power Distribution Cabinet Output switch | 10A/16A/25A/32A/40A/63A | |
| AC+DC Power Distribution Cabinet Dimensions (mm)( H*W*D) | 2500\2200\2000×1200×300\400\600 | |
| AC Power Distribution Cabinet Dimensions (mm)( H*W*D) | 2500\2200\2000×1200×300\400\600 | |
| AC Power Distribution Cabinet Input switch | Optional: 160A/250A/400A/630A | |
| AC Power Distribution Cabinet Output switch | 10A/16A/25A/32A/40A/63A (1P or 3P) | |
