Product Overview
Intelligent Busbar Trunking System

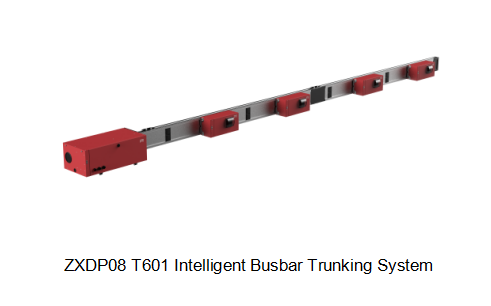

Based on the understanding of the power supply and distribution of modern Data Centers, the end intelligent busbar trunking system developed by ZTE provides customers with flexible and customizable power distribution solutions. The ZTE ZXDP08 T601 Intelligent Busbar Trunking System adopts modular design, which features flexible configuration, real-time management and seamless interconnection with iDCIM to ensure the power supply security of the system.
Product Features
- Reliable
Support for hot swapping
Insulation and voltage resistance: 1000 V
The service life is up to 25-30 years
- Fast
Modular design, Fast Installation
Delivery time off 50%
Plug-and-play reduces O&M work
It can be reused for ease of quick migration
- Flexible
Modular design, On-Demand Expansion
Standard: AC single-phase, AC three-phase, DC
Saves space and requires low height
Suspension Installation, Bracket Installation
- Intelligent
Multiple communication interfaces, such as RS485, RS232, and IP
Supports protocols such as MODBUS and SNMP
Learn more
Product_Parameter
| Model | Parameter(Operator) | Parameter(Enterprise) |
|---|---|---|
| Model | ZXDP08 T601T（V2.0R01）/ZXDP08 T601B（V2.0R01） | |
| Capacity | 250A,400A,630A/250A,400A,630A,800A | |
| Busbar Trunking shell | Aluminum alloy | |
| Interface Form | Fixed | |
| SPD | Class-C | |
| IP Level | IP54( No Feeder Unit and Tap-off Unit) | |
