Product Overview
InRow Air Conditioner

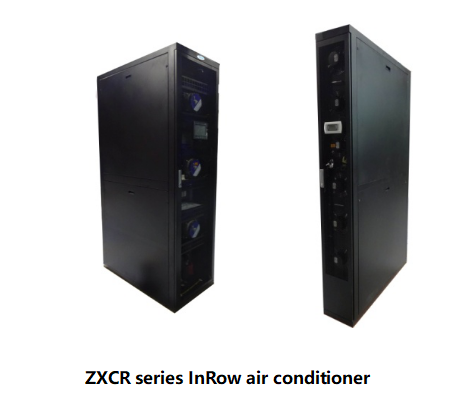

With the rapid development of communication technologies, the power and heat density of IT devices are increasing, resulting in higher and higher heat dissipation requirements. The heat dissipation method of point-to-point InRow air conditioners is attracting more attention. By reducing the distance between the heat source and the heat dissipation system, the InRow air conditioner combines the heat load of the air conditioner with the heat source to achieve the effect of direct heat of the cold source, prevent the accumulation of the heat air from IT equipment, and effectively reduce the PUE of the system. ZTE ZXCR series InRow air conditioners can be widely used in various places that require precise temperature and humidity control: Computing equipment room, data center, SPC equipment room and satellite mobile communication station. The has 300 mm and 600 mm standard cabinet sizes and widths of water and refrigerant sets. It is committed to providing green, energy-saving, efficient, reliable, easy-to-maintain, and easy-to-integrate in-row heat dissipation solutions.
Product Features
- On-demand cooling
Use EC fans that adjust the air volume as required to adjust the temperature in real time.
The chilled-water unit uses electronic control to automatically adjust the two-way valve. The chilled-water flow is automatically matched to achieve on-demand cooling.
The refrigerant unit uses a frequency conversion press, which automatically adjusts the compression ratio in accordance with the cooling requirements to adjust the cooling capacity.
The refrigerant unit uses electronic expansion valves, which adjust the refrigerant flow in accordance with the real-time temperature to achieve efficient and accurate cooling.
- Efficient energy saving
Optimize the heat exchanger structure to achieve the maximum heat exchange in the limited space
The air-cooled generator optimizes the flow field, works with EC fans and frequency conversion compressors to achieve the best effect and the lowest energy consumption.
The water-cooled generator optimizes the pipeline layout, and achieves the optimal match with the electric two-way water valve and EC fan to reduce energy consumption.
- Intelligent Management and Control
Multiple control modes. Different monitoring parameters can be used as required.
The group control function can optimize the operation of multiple units, reduce energy consumption and effectively reduce the PUE of the equipment room.
Remote control: Air-conditioner parameters can be set and monitored remotely to prevent irrelevant personnel from entering the system.
- Easy expansion
300 mm and 600 mm wide standard cabinets for easy expansion
Multiple Electrical Systems and Different Scenarios
Learn more
Product_Parameter
| Model | Parameter(Operator) | Parameter(Enterprise) |
|---|---|---|
| Model | ZXCR 3R25/ZXCR 6R42 | |
| Cooling Capacity（kW）Supply wind 37℃/RH25% | 25.3/41.5 | |
| Airflow（m3/h） | 5000/9000 | |
| Power supply | 220V/50Hz/380V/3PH/50Hz | |
| Weight（kg） | 180/216 | |
| Size:H×W×D（mm | 2000(2200)×300×1200/2000(2200)×600×1200 | |
| Cooling Capacity（kW）Supply wind 35℃/RH25% | 24.4/40.7 | |
| Humidification capacity（kg/h） | 3（optional）6（optional）/3（optional）3（optional） | |
| Electrical heater（kW） | 3（optional）/6（optional） | |
| Noise（dB） | 68/72 | |
| FLA（including?heater?and?humidifier）（A） | 31.5/45 | |
| FLA（A) | 24/33.6 | |
