Product Overview
%20.jpg)

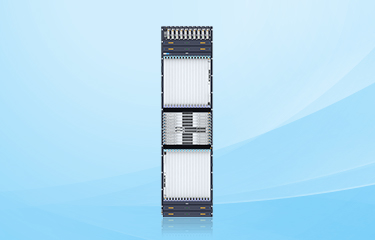

ZXONE 9700
The ZXONE 9700 equipment is ultra-large cross-connect capacity OTN product oriented to 100G and beyond 100G transmission.It supports 10G/100G/200G/400G/600G/800G/1.6T transmission rates and unified cross-connection of ODUk/Packet/VC/OSU. It has an electrical layer switching capacity of up to 64T, and supports wavelength-level opitcal layer cross-connect scheduling and packet switching. Deployed at the backbone core layer and local/metro networks, the eqiupment can completely meet operators’ requirements for transparent transmission, flexible scheduling, efficient aggregation and management & monitoring of large-granularity data services.
Ultra-large capacity
● Industry's first commercial OTN platform with a single-subrack capacity of 64T
Super transmission
● Supports 1T/1.6T backplane bandwidth per slot and provides sufficient bandwidth resources
Integrated transport
● Unified ODUk/PKT/VC/OSU cross-connect platform, providing high-quality interconnection
All-optical interconnection
● The optical backplane-based OXC supports 20/32 degrees and the architecture can be upgraded to 40+ degrees
Green O&M
● Energy saving, efficient heat dissipation
Specification
| Specification | Parameter | |
|---|---|---|

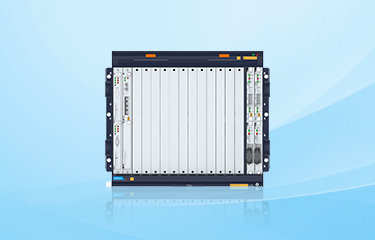

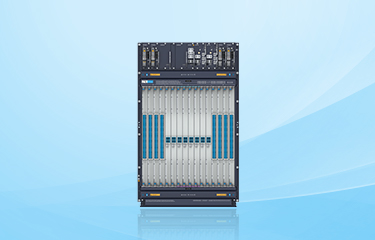

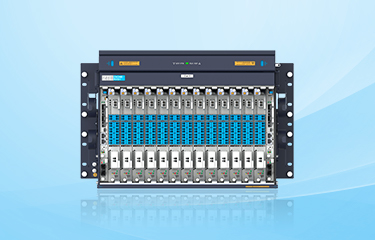

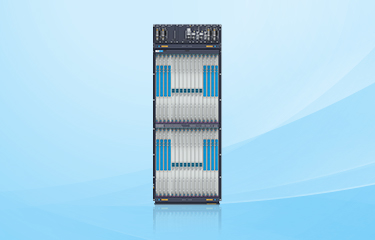

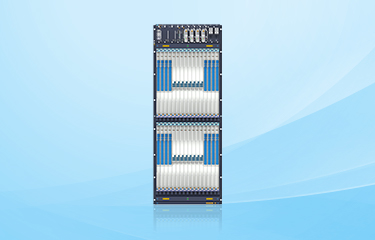

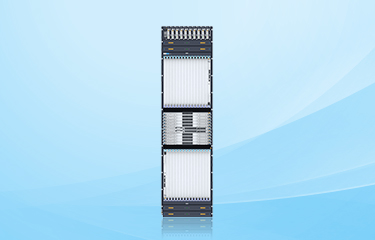

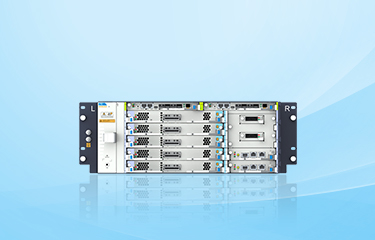

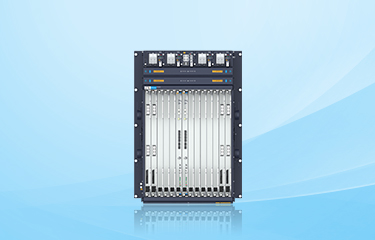

| Dimensions (H * W * D) mm | Electrical cross-connect subracks: ZXONE 9700 S1: 530.6*533*286.8 ZXONE 9700 S2: 1108.4*533*286.8 ZXONE 9700 S3: 1822*533*314.6 ZXONE 9700 S6: 1822*533*639 ZXONE 9700 G2K: 886.2*533*290 ZXONE 9700 G2K-E: 755.6*533*295 ZXONE 9700 S3K: 1972*533*295 ZXONE 9700 S3K-E: 1972*533*294.8 ZXONE 9700 S3K(G): 2200*600*600 ZXONE 9700 S6K: 2200*600*600 ZXONE 9700 S3K-E(B): 1972*533*294.8 Transmission subracks: ZXONE 9700 NX41/DX41(21 inches): 447*535*275 ZXONE 9700 NX41/DX41(19 inches): 447*482.6*275 ZXONE 9700 NXG1: 347*443*295 ZXONE 9700 NXG0: 176.3*442*255.8 Optical cross-connect subrack: ZXONE 9700 OX42: 1400*533*310.4 ZXONE 9700 OX42-E: 1397*533*304 ZXONE 9700 OX42-S: 842*533*304 |
|
| Interface Type | Client-side:STM-1/STM-4/STM-16/STM-64， FE/GE/10GE/100GE/200GE/400GE，FC100/FC200/FC400/FC800/FC1200/FC1600/FC3200, OTU1/OTU2/OTU2e/OTU4, etc. Line-side:OTU2/OTU2e/OTU4/OTUC2/OTUC4/OTUC8/OTUC16 |
|
| Power supply mode | DC: -48V AC: 110V/220V HVDC: 240V |
|
| Operating temperature | NXG1 sub-rack：-5℃~+45℃ NXG0 sub-rack：-5℃~+50℃ Other sub-racks except NXG1/NXG0：0℃~+45℃ |
|
| Operating humidity | 5%~85% | |
