Product Overview
.jpg)
ZXMP M721

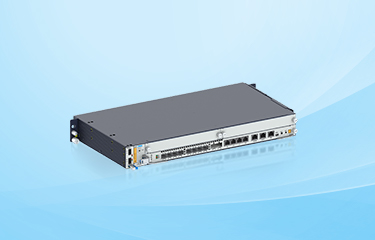

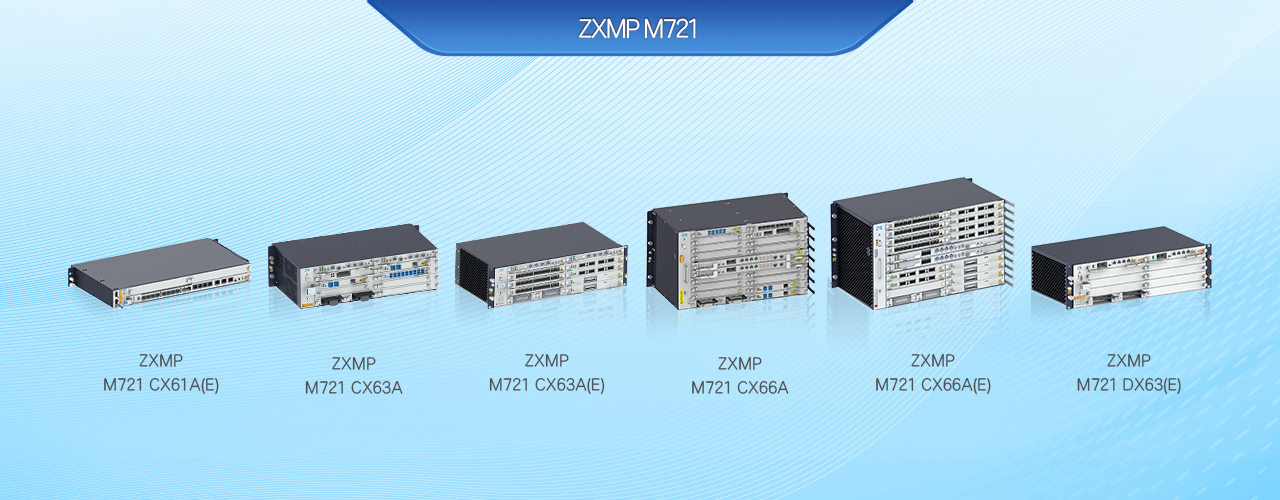

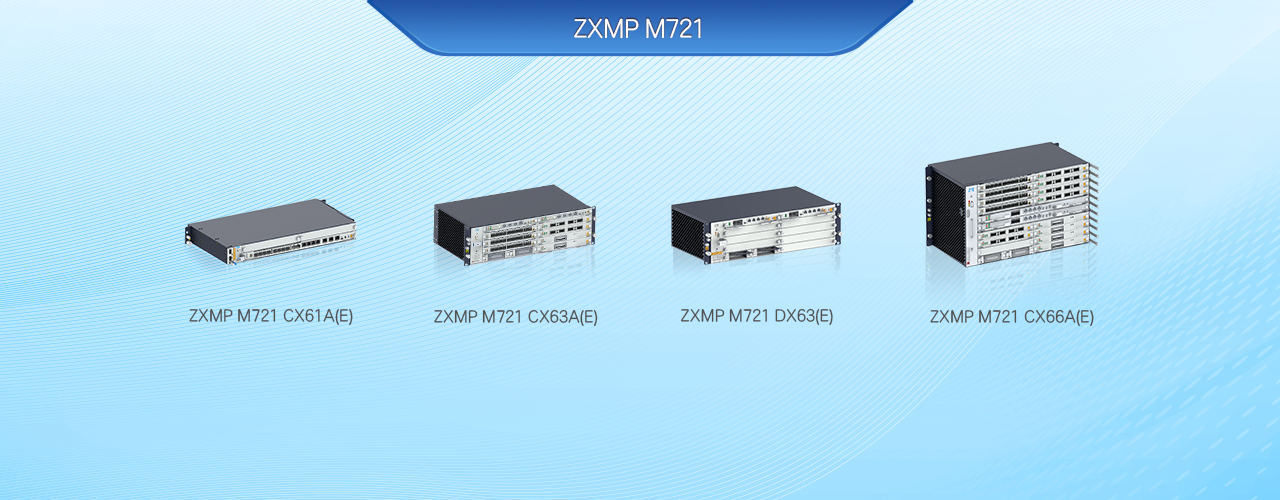

As a compact OTN product developed by ZTE, the ZXMP M721 is applied to the aggregation/access layer of the MAN and features small size, large capacity, low power consumption and high reliability. The product integrates multiple transmission technologies, like OTN, WDM, TDM and IPRAN/PTN, to achieve large-capacity unified cross connection of ODUk/PKT/VC/fgOTN/OSU, and uniformly transport a variety of services in different application scenarios in aggregation/access-layer networks of operators and enterprise customers. It has several models: DX63(E), CX61A(E), CX63A/CX63A(E), CX66A/CX66A(E), which can be deployed flexibly as needed to effectively save the equipment room footprint, reduce the power consumption and address the demand for environmental protection.
Ultra-broadband transmission
● Support the 80/96×10G/100G/200G and 64×400G DWDM systems, and guarantee sufficient bandwidth resources
Ultra-large capacity
● A single subrack has the cross-connect capacity of up to 2.8T, and a single slot has the backplane bandwidth of at most 200G, which take the lead in the industry
All-round transport
● The ODUk/PKT/VC/fgOTN/OSU unified cross-connect platform can access 2M~100G services, and supports fixed-line, wireless and private line services at the same time, simplifies user equipment types and network layers
Flexible scheduling
● The product is able to groom 2~9-degree optical layer services. It can be configured with ROADM functions such as colored/colorless, directional/directionless and Flex grid, and offer differentiated solutions to customer needs
Convenient O&M
● Support various O&M modes including OTDR, APO and optical performance monitoring
Perfect clock/time function
● Support clock synchronization and 1588V2 time synchronization in full compliance with the clock precision requirements of 4G/5G mobile communication technology
Specification
| Specification | Parameter | |
|---|---|---|
| Dimensions (H * W * D) mm | CX61A(E): 54*446*240 CX63A/CX63A(E)/DX63(E): 130*442*240 CX66A/CX66A(E): 264*442*240 |
|
| Interface Type | Client side: E1, STM-1/STM-4/STM-16/STM-64, FE/GE/10GE/40GE/50GE/100GE/400GE, FC100/FC200/FC400/FC800/FC1200/FC1600/FC3200, OTU1/OTU2/OTU2e/OTU4, etc. Line side: OTU1/OTU2/OTU2e/OTU4/OTUC2/OTUC4 |
|
| Power supply mode | DC: -48V AC: 110V/220V HVDC: 240V |
|
| Operating temperature | CX61A(E): -30~65℃ DX63(E), CX63A/CX63A(E), CX66A/CX66A(E): -5~50℃ |
|
| Operating humidity | 5%~85% | |
