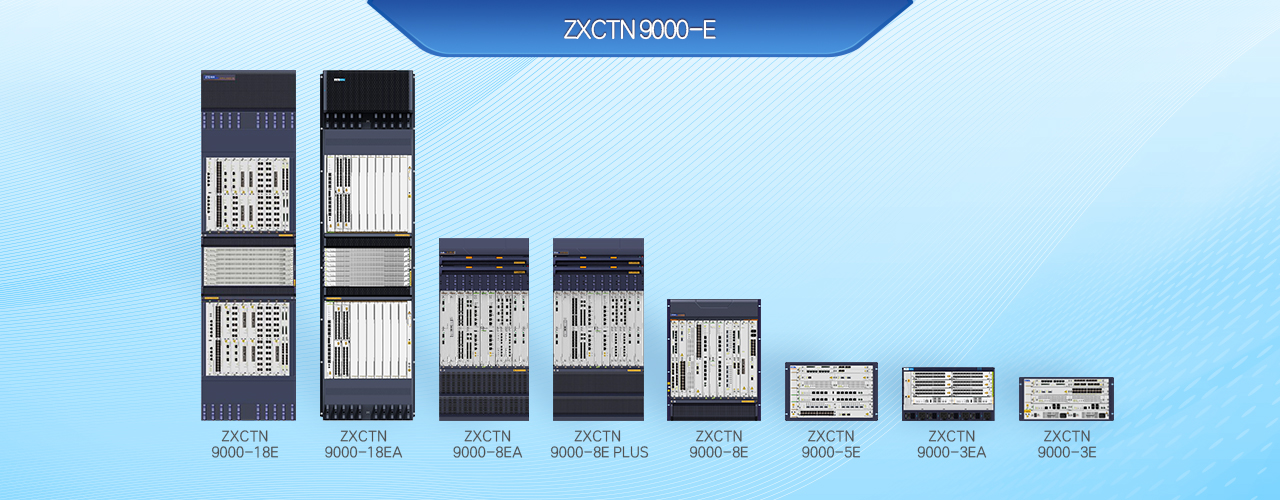

ZXCTN 9000-E
The ZXCTN 9000-E series devices integrate the advantages of both packet and transport technologies, employ the world-leading distributed large-capacity non-blocking switching architecture and have diversified service functions. Supporting SDN and 5G service transport, the devices can provide carrier-grade reliability and completely meet the service transport requirements of MBH, Metro-E and FMC scenarios. They can also help customers to reduce CAPEX and OPEX.

Ultra-large capacity and unified service transport
●   Large-capacity and high-performance system platform
●   Supports GE to 400GE interfaces, meeting the flexible networking requirements in multiple scenarios

Evolve with the times, facing the 5G network era
●   Small-granularity slice
●   FlexE low-latency forwarding

Smooth transition and continuous network evolution
●   SR, SRv6 and inband OAM supporting 5G service upgrade

●   Self-developed chips supporting smooth evolution of hardware


Multi-protection, easy management, and easy maintenance
●   Comprehensive reliability solution

●   Convenient commissioning and O&M
●   Guaranteed service quality

Learn more


Specification Parameter
Dimensions (H * W * D) mm ZXCTN 9000-18EA:1819.6*442*634

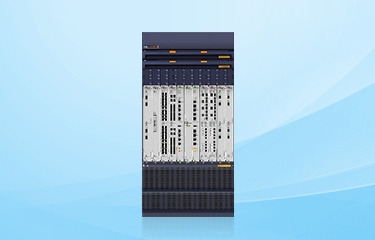

ZXCTN 9000-8EA(DC): 619.5*442*634
ZXCTN 9000-8EA(AC/HVDC): 797.3*442*634
ZXCTN 9000-8EA(DC/AC/HVDC):971.5*442*634
ZXCTN 9000-3EA:264*442*630
ZXCTN 9000-18E:1819.6*442*634
ZXCTN 9000-8E Plus:971.5*442*634

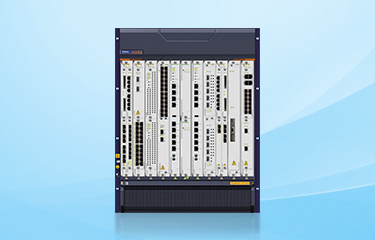

ZXCTN 9000-8E(DC): 619.5*442*634
ZXCTN 9000-8E(AC/HVDC): 797.3*442*634

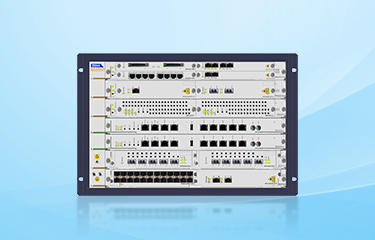

ZXCTN 9000-5E(DC): 308.3*442*630
ZXCTN 9000-5E(AC/HVDC): 352.8*442*630
ZXCTN 9000-3E(DC): 175*442*628
ZXCTN 9000-3E(AC/HVDC): 219.4*442*628
Interface Type ZXCTN 9000-18EA:400GE,100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-8EA: 400GE,100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-3EA:400GE,100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-18E:400GE,100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-8E Plus:400GE,100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-8E: 100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-5E: 100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
ZXCTN 9000-3E:100GE,50GE,40GE,25GE,10GE,GE/FE,STM-N POS,E1/CE1
Power supply mode ZXCTN 9000-18EA:DC:-48V/-60V;AC:110V/220V;HVDC:240V/336V
ZXCTN 9000-8EA: DC:-48V/-60V;AC:110V/220V;HVDC:240V/336V
ZXCTN 9000-3EA:DC:-48V;AC:110V/220V;HVDC:240V/336V
ZXCTN 9000-18E:DC:-48V;AC:110V/220V;HVDC:240V/336V
ZXCTN 9000-8E Plus:DC:-48V;AC:110V/220V;HVDC:240V/336V
ZXCTN 9000-8E: DC:-48V;AC:110V/220V;HVDC:240V
ZXCTN 9000-5E:DC:-48V;AC:110V/220V;HVDC:240V
ZXCTN 9000-3E:DC:-48V;AC:110V/220V;HVDC:240V
Operating temperature -5~45℃
Operating humidity 5%~90%
