Product Overview
ZXV10 B710S2-A16
ZXV10 B710S2-A16 is a HD DVB STB for satellite operators. It adopts the latest high performance SOC, supports high definition stream decoding and outputting. It’s fully compliant with the DVB-S and DVB-S2 standard, supports MPEG-2 / H.264 HD video decoding, supports Nagra advanced security CAS (NASC 3.0), brings you high cost-effective services, and helps the operator offer stable satellite TV services to end users.
Product Parameter
| Model | Parameter | |
|---|---|---|
| CPU | The high performance SoC，2000DMIPS | |
| Flash | 128MB NAND | |
| DDR SIZE | 256MB DDR3 | |
| Frequency Range | 950～2150MHz | |
| Standard | DVB-S/DVB-S2 | |
| DVBS Demodulation | DVB-S(QPSK); DVB-S2(QPSK or 8PSK) | |
| DVBS Symbol Rate | DVB-S/S2 QPSK from 2M to 45M ; DVB-S2 8PSK from 2M to 30M | |
| Size | 100 mm*100 mm*25.8 mm (L*W*H) | |
| Weight | 150g | |
| Video | MPEG-2 – MP@ML; MPEG-4 AVC – MP@L3; MPEG-4 AVC – HP@L4 | |
| Audio | MPEG-1 Layers 1, 2 (ISO/IEC 11172-3); MPEG-2 AАC (ISO/IEC 13818-7); Dolby Digital AC-3, Dolby Digital Plus | |
| Resolution | HD - Up to 1080p 24 decode (Output up to 1080p 60) | |

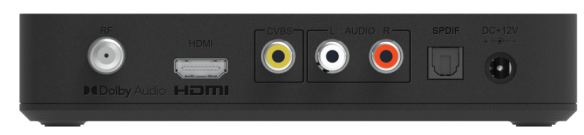

| LNB IN | IEC 169-24, F-Type,1*RF IN, 1*Tuner | |
| Analog Audio/Video Output | 3*RCA (CVBS + L/R Audio) to TV | |
| HDMI | 1*HDMI 1.4a Type A Connector | |
| DC power in | 12V DC Input | |
| USB | 1*USB2.0 Type A | |
| Power | AC-DC Adaptor, iput AC100～240V, 50/60Hz ±10%, output 12V | |
