Product Overview

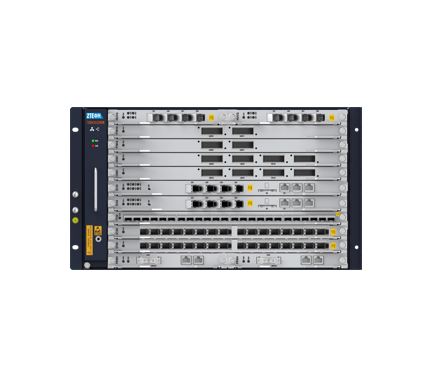

ZXA10 C350M
The ZXA10 C300M is a medium capacity hybrid fiber & copper platform that provides the most comprehensive broadband access technologies including copper accesses, fiber accesses, and legacy narrow-band accesses. This product is used for PSTN/ISDN transformation, legacy DSLAM transformation, hybrid fiber & copper access network construction.

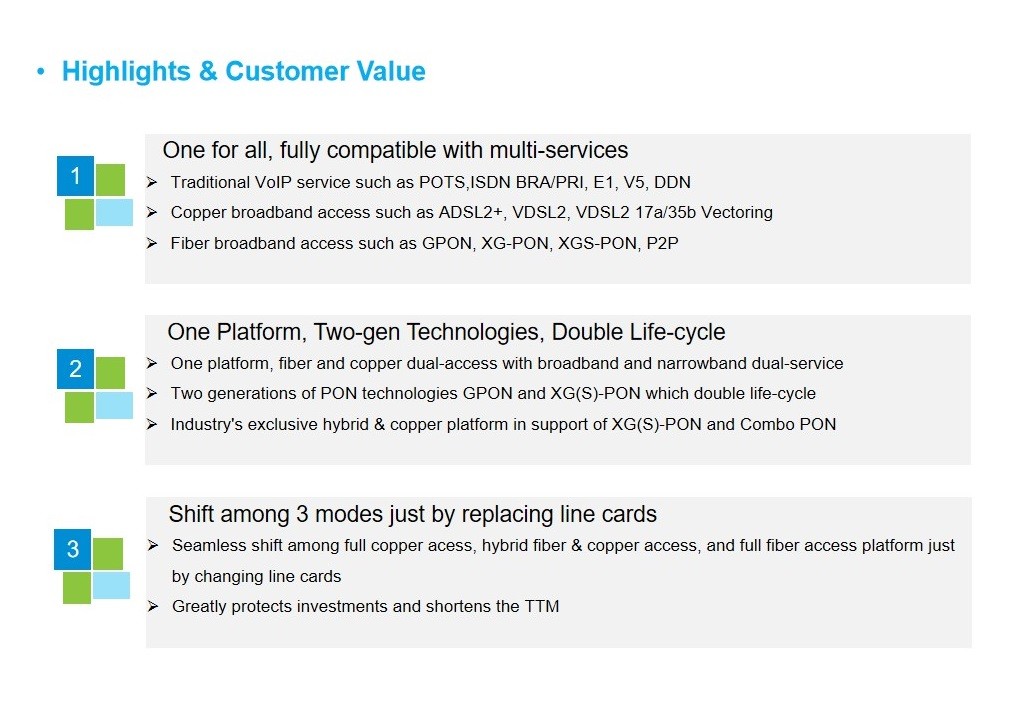

One for all, fully compatible with multiple services
■ Exclusively inherits narrowband services.
■ Copper broadband access such as VDSL2, VDSL2 Vectoring.
■ Fiber broadband access such as GPON, XG(S)-PON, p2p.
One platform, Two-gen Technologies
■ Industry's exclusive hybrid fiber & copper platform in support of XGS-PON and Combo PON.
Swtiches among 3 modes through simple line card replacement
■ Seamless shift among full copper access, hybrid fiber & copper access, and full fiber access platform just by changing line cards.
■ Greatly protects investments and shortens the TTM.
Product Parameter
| Model | Parameter | |
|---|---|---|
| Uplink interface | GE, 10GE, GPON, XG-PON, E1 | |
| Downlink interface | POTS, ISDN BRI/PRI, E1, V.35, 2/4 wire audio; ADSL2/2+, SHDSL, VDSL2, VDSL2 17a/35b Vectoring; GPON, XG(S)-PON, Combo PON, P2P | |
| Dimensions | 263.9 mm*482.6 mm*240 mm(19"shelf) （H*W*D) | |
| Weight | 3Kg(empty shelf), 20Kg(full configuration) | |
| Operating voltage | -48 VDC ± 20% | |
| Operating current | ≤ 20 A | |
| Operating temperature | -35°C ~ +65°C, min. start-up temperature is -25°C | |
| Operating relative humidity | 5%-95% | |
| Altitude | ≤ 4000 m | |
| Air pressure | 70 kPa-106 kPa | |
