ZXA10 C300M
The ZXA10 C300M is a large capacity hybrid fiber & copper platform that provides the most comprehensive broadband access technologies including copper accesses, fiber accesses, and legacy narrow-band accesses. This product is used for PSTN/ISDN transformation, legacy DSLAM transformation, hybrid fiber & copper access network construction.

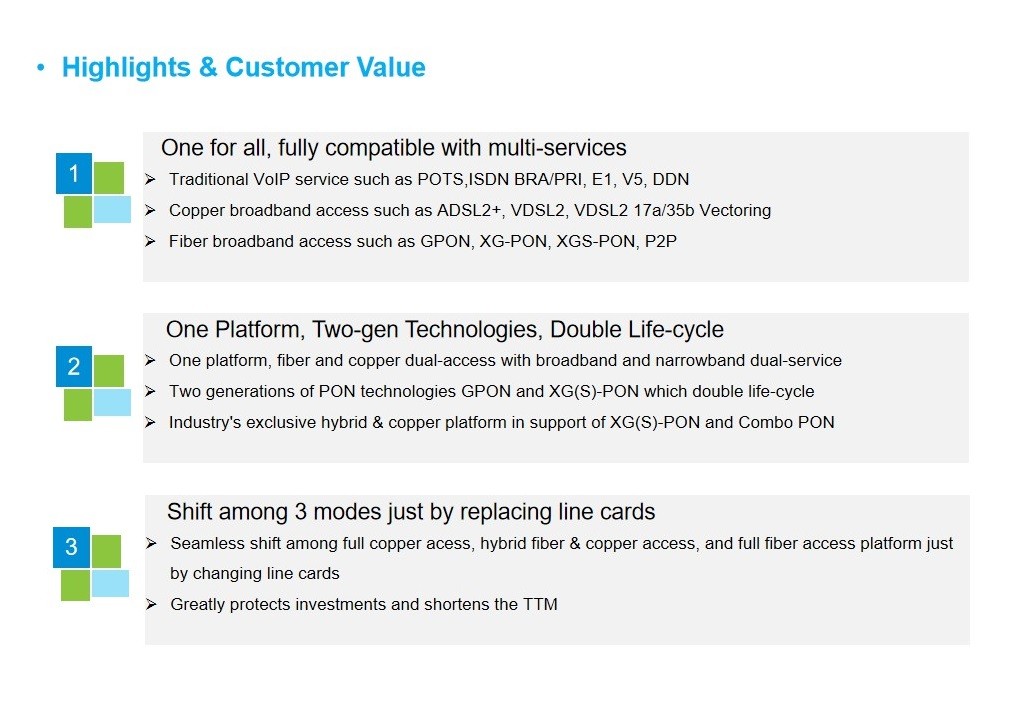

One for all, fully compatible with multiple services

■ Exclusively inherits narrowband services.

■ Copper broadband access such as VDSL2, VDSL2 Vectoring.

■ Fiber broadband access such as GPON, XG(S)-PON, p2p.


One platform, Two-gen Technologies

■ Industry's exclusive hybrid fiber & copper platform in support of XGS-PON and Combo PON.


Swtiches among 3 modes through simple line card replacement

■ Seamless shift among full copper access, hybrid fiber & copper access, and full fiber access platform just by changing line cards.

■ Greatly protects investments and shortens the TTM.




Product Parameter

Model Parameter
Uplink interface GE, 10GE, GPON, XG-PON, E1
Downlink interface POTS, ISDN BRI/PRI, E1, V.35, 2/4 wire audio; ADSL2/2+, SHDSL, VDSL2, VDSL2 17a/35b Vectoring; GPON, XG(S)-PON, Combo PON, P2P
Dimensions 449.2 mm*535 mm*270 mm(21"shelf); 443.7 mm*482.6 mm*270 mm(19"shelf) (H*W*D)
Weight 5Kg(empty shelf), 32Kg(full configuration for 21"shelf); 3.75Kg(empty shelf), 29Kg(full configuration for 19"shelf)
Operating voltage -48 VDC ± 20%
Operating current ≤ 40 A
Operating temperature -35°C ~ +65°C, min. start-up temperature is -25°C
Operating relative humidity 5%-95%
Altitude ≤ 4000 m
Air pressure 70 kPa-106 kPa
