Product Overview

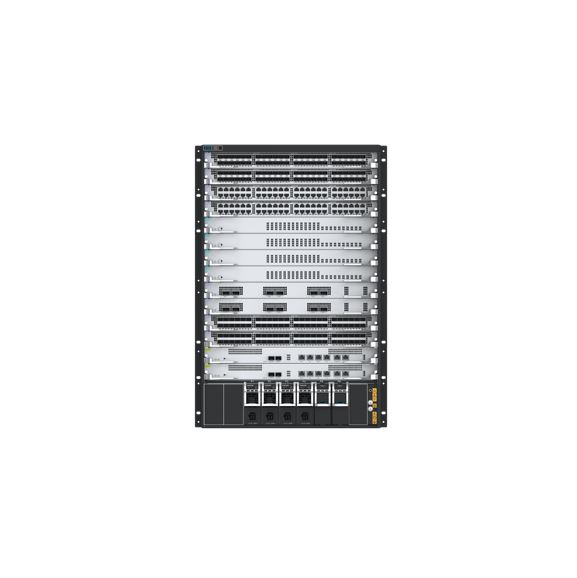

ZXR10 C89E-12
The ZXR10 C89E-12 switch is an high-end modular switch featuring big switching capability, L2/L3/MPLS service capability, VXLAN/EVPN capability, high-performance, superior reliability and enhanced security. The ZXR10 C89E-12 switch is the core/aggregation switch designed for the scenarios of campus and metro network. The ZXR10 C89E-12 switch supports a variety of technologies to fulfill high performance, better reliability, easy maintenance and low power consumption which help customer to build future-oriented low TCO networks.
Product Parameter
| Model | Parameter | |
|---|---|---|
| Interfaces Types | FE/GE RJ45; GE SFP; 10GE SFP+; 40G QSFP+; 100G QSFP28 | |
| Number of Line Card Slots | 12 | |
| Number of Main Control Slots | 2 | |
| Number of Switching Card Slots | 4 | |
| Weight | 133kg | |
| AC Power Supply | Rated input voltage range: 100V/220V,50Hz~60Hz; Max input voltage range: 90V~290V, 45Hz~66Hz | |
| DC Power Supply | Rated input voltage: -48V/-60V; Input voltage range: -72V ~ -38V | |
| HVDC Power Supply | 240V/380V | |
| Power Redundancy Pattern | AC/DC: 3+3 | |
| Heat Dissipation Pattern | Fan cooling, independent fan subracks, Front-to-Back Airflow | |
| Working Temperature | Long term working temperature: 0℃ ~ +45℃; Short term working temperature: -5℃ ~ +50℃ | |
| Working Humidity | 5%~95% (non-condensing) | |
