Design of a Magneto-Electric Dipole Element for Mobile Communication Base Station Antennas

Release Date:2011-06-20  Author:Hang Wong and Kwai Man Luk  Click:



1 Introduction
    2G, 3G, LTE, Wi-Fi, and WiMAX, demand wideband unidirectional antennas with low cross-polarization, low back radiation, symmetric radiation pattern, and stable gain over the operating frequency range. Antennas with these excellent electrical characteristics can save cost, space, and energy  because several wireless communication systems can be accommodated. There are three conventional ways of implementing wideband low-profile antennas with a unidirectional radiation pattern. They are: (1) directed dipoles; (2) wideband patch antennas; and (3) complementary antennas.


    Dipole antennas are commonly used in wireless communication systems because of their reasonably wide bandwidth, good radiation characteristics, and ease of construction. They are capable of a directional or bi-directional radiation pattern [1]-[3]. Much effort has been put into developing wideband dipole antennas because of the continuously expanding range of wireless services for voice and data. Methods such as flared dipole arms [4], bowtie shaped dipole [5]-[6], flat dipole [7] and the use of parasitic elements [8] have been proposed to achieve wideband for dipole antennas. Bandwidth of 30% to 100% can be achieved if a wideband balun is included. However, wideband directed dipole antennas cannot easily maintain a stable radiation pattern over the operating frequency range. Their radiation patterns vary substantially with frequency.


    Another popular unidirectional antenna is the microstrip or patch antenna. There are several designs for wideband patch antennas including the L-probe patch antenna [9]-[13], the aperture coupled patch antenna [14]-[16], the stacked patch antenna [17]-[21] and the U-slot patch antenna [22]-[27]. These antennas have a wide impedance bandwidth ranging from 20% to 40%, which is sufficient for many modern wireless communication systems. However, these antennas [9]-[27] have drawbacks such as high cross-polarization, large variation in gain, and beamwidth over the operating frequency range. Although techniques such as anti-phase cancellation [28], twin-L probes coupled feed [29], and meandering-probe feed [30]-[34] can be employed to suppress cross polarization, the resulting antennas still have large gain and beamwidth variations with different frequencies. They also have large differences in E-plane and H-plane beamwidths.


    To achieve stable radiation characteristics over the operating frequency range, a third approach is to develop a complementary antenna consisting of an electric dipole and a magnetic dipole. The technique of using a complementary antenna to achieve equal E-plane and H-plane patterns was revealed several decades ago [35], [36]. It is well known that an electric dipole has a figure-8 radiation pattern in the E-plane and a figure-O pattern in the H-plane. A magnetic dipole has a figure-O pattern in the E-plane and a figure-8 in the H-plane. If both electric and magnetic dipoles can be excited simultaneously with appropriate amplitude and phase differences, a unidirectional radiation pattern with equal E-plane and H-plane can be obtained. A practical design shown in [37] consists of a passive dipole placed in front of a slot. This idea is based on a slot-and-dipole combination [38]-[40]. However, these designs [35]-[40] have either narrow bandwidth or bulky structure. They may not be able to fulfill the stringent requirements of modern wireless communication systems. Recently, a new wideband unidirectional antenna element comprising a planar dipole and a vertically-oriented shorted patch antenna was presented [41]. This antenna was developed based on a complementary concept. It has a simple structure, wide bandwidth, low cross-polarization, symmetrical radiation pattern, and very low back radiation. Because of low back radiation, the gain and beamwidth of the antenna do not vary significantly with frequency. As a result, the gain and efficiency of the antenna are higher than that of many other available antenna elements. The antenna has many applications in modern wireless communication systems.


2 Magneto-Electric Dipole Antennas

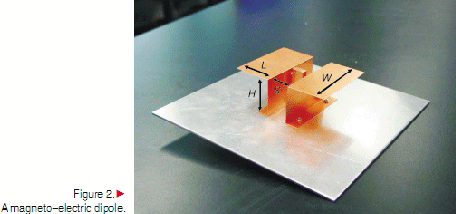

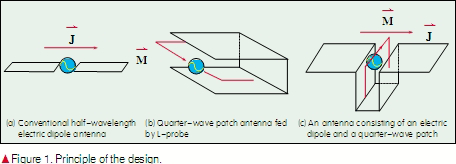

    To implement a complementary antenna, an appropriate electric dipole and magnetic dipole needs to be selected. Among many choices of electric dipoles, a planar dipole antenna is chosen (Fig.1a) and a wideband short-circuited patch antenna is chosen as the magnetic dipole (Fig.1b) [41]. To combine these two antennas, a short-circuited patch is placed so that its open end can be connected to the horizontal planar electric dipole, as shown in Fig.1c [41]. Based on this method, a new wideband antenna is developed after a detailed parametric study, and its prototype is shown in Fig.2 [41]. This antenna operates at 2.5 GHz. The planar dipole has a width W=60 mm (0.5 λ) and a length L=30 mm (0.25 λ).  The shorted patch antenna has a length H=30 mm (also close to 0.25 λ). The distance between the two vertical plates is
S=17 mm, which is about 0.14 λ. The width of the dipole and the patch W is about 0.5 λ. The size of the ground plane can be changed to adjust the back radiation—an acceptable choice is 160 mm ×160 mm (1.3 λ ×1.3 λ).






    An Γ-shaped probe is used as the feed. This consists of three parts made by folding a rectangular strip of metal. The first part is vertically oriented. One end is bonded to the coaxial launcher mounted underneath the ground plane. Together with the vertical plate of the shorted patch antenna, this part functions as an air microstrip line with a 50 Ω characteristic impedance. The line transmits the signal to the second part of the feed. The second part is placed horizontally to excite the planar dipole and the shorted patch antenna simultaneously. The input resistance of the antenna depends on the length of this part. It also carries an inductive reactance that can affect the matching performance of the antenna. Together with the second vertical plate, the third part of the feed forms an open-circuited microstrip line. By choosing a suitable length for this part, its equivalent capacitive reactance can be used to suppress the inductive reactance that is caused by the second part.

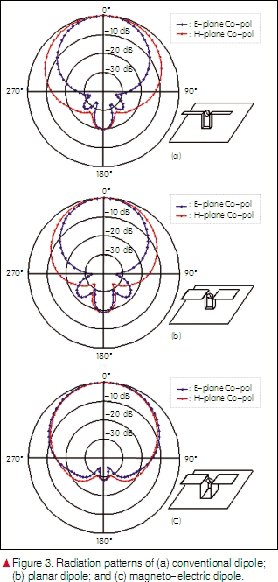

The radiation patterns of a thin dipole, a planar dipole, and a magneto-electric dipole (shown in Fig.3) are simulated [41]. They have the same ground plane size of 160 mm×160 mm and the same antenna height H=30 mm (0.25 λ). For these three cases, the length of the dipole is L= 60 mm (0.5 λ), referring to an operating frequency of 2.5 GHz. For the first two cases, each antenna needs a balun for excitation. For the third case, the antenna is simply excited by a Γ-shaped strip feed.




    The thin dipole in Fig.3a and the planar dipole in Fig.3b have the same radiation pattern, that is, high back radiation and unequal E-plane and H-plane patterns. For the magneto-electric dipole in Fig.3c, the beamwidths in the E-plane and H-plane become almost identical. More importantly, the level of back radiation is significantly lower than that of the first and second cases by about 10 dB. The antenna can also maintain low cross-polarization.

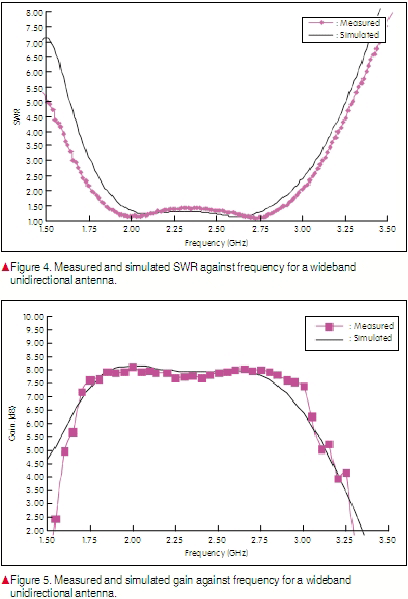

    A prototype was built and tested. In Fig.4, the measured and simulated SWR curves show that the antenna has an impedance bandwidth of 52% (SWR≤2) when operating between 1.75 GHz and 3.0 GHz [41]. From the measured and simulated gain curves in Fig. 5, it can be seen that antenna gain varies between 7.5 dBi and 8.2 dBi across the operating frequency range, with an average value of 8 dBi [41]. Measured radiation patterns at frequencies of 1.75 GHz, 2.5 GHz, and 3 GHz are shown in Fig.6 [41]. The broadside radiation patterns in both E and H planes are stable and symmetric over the operating frequency range. At the center frequency of 2.5 GHz, the H-plane beamwidth is 79°, slightly larger than the E-plane beamwidth of about 75°. More importantly, there is low cross-polarization and low back radiation over the operating
frequency range.






3 Dual-Polarized Magneto-Electric Dipole Antenna

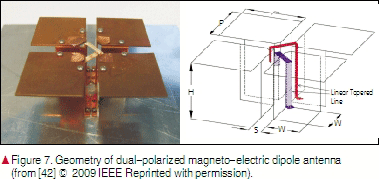

    Based on the linear polarized design, a dual-polarized magneto-electric dipole antenna was fabricated (Fig.7) [42]. This antenna also consists of electric dipoles and shorted patch antennas. The upper part of the antenna consists of two cross electric dipole elements with four square patches of dimensions P ×P=29.2 × 29.2 mm2. The electric dipoles are connected with the lower part of the antenna, which comprises four vertically oriented shorted patch antennas—with H=28 mm (~0.23 λ0) and W=16.5 mm (~0.14 λ0)— connected together. The distance between the two vertical walls of a shorted patch antenna is S=62 mm. Each Γ-shaped strip feed consists of a transmission line and a coupled strip. The transmission line, which is a linear tapered shape for impedance transformation, is located close to the corner of a folded vertical wall. The dimensions of the L-shaped coupling strip can be altered to achieve good impedance matching. The end of the coupling strip is not physically connected to the second arm of the dipole. It passes through the triangular hole of second arm of the dipole without connecting to the metal surface. The coaxial launcher underneath the ground plane is connected to the end of the linearly tapered line. To reduce mutual coupling between the two input ports, the two orthogonal coupling strips have different heights.

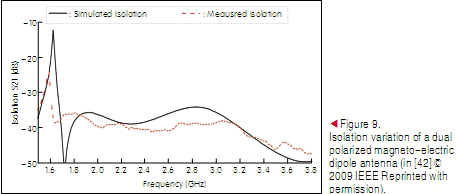

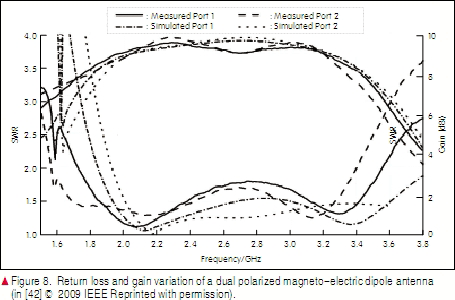

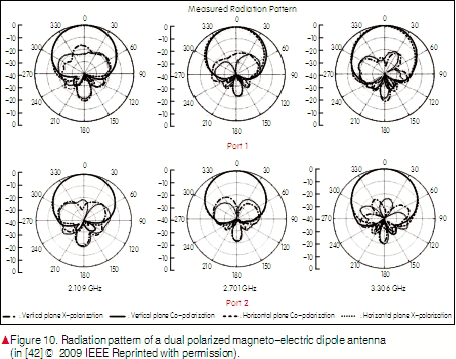

    The prototype was measured with an HP8753ES network analyzer and a compact range measurement system. The results are shown in Fig. 8 and Fig. 9 [42]. The impedance bandwidths (SWR≤2) measured at ports 1 and 2 are 69.7% and 74.6% respectively. Because of the small difference in the dimensions of the coupling strips, the operating frequency ranges of the two polarizations are slightly different. As a result, the common bandwidth of the two ports is 65.9%, ranging from 1.7185 GHz to 3.409 GHz. Over the operating frequency range, the isolation between the two input ports is more than 36 dB. This fulfills the design requirement of mobile communications.






    The variation in antenna gain is also shown in Fig.8. The gain is more than 9 dBi over a wide frequency range, with a maximum value of 9.5 dBi. More precisely, the 3 dB gain bandwidth covers a range from 1.6 to 3.55 GHz. The antenna’s radiation patterns were obtained at frequencies of 2.109 GHz, 2.707 GHz, and 3.306 GHz (Fig.10) [42]. The radiation pattern is stable over the operating frequency range, and the back radiation is insignificant. The beamwidth varies only within a few degrees over the operating frequency range. If the size of the ground plane is reduced, the broadside radiation pattern does not change substantially, but back radiation and gain are affected. The antenna’s performance is not very sensitive to changes in the dimensions of the gap and height of the antenna. This confirms the robustness of the design. Measurement results agree very well with simulation.








4 Horizontally Polarized Wideband Antenna with Conical Radiation Pattern

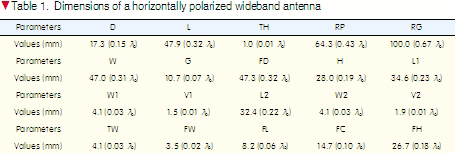

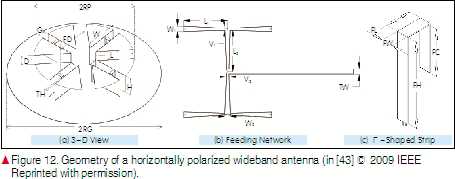

To create a horizontally polarized wideband antenna with conical radiation pattern, four magneto-electric dipoles are arranged in a ring, as shown in Fig.11 and Fig.12 [43]. The prototype is operated at 2 GHz. The dimensions shown in Table 1 were selected for excellent performance. The four magneto-electric dipoles are excited in-phase by a tapered power divider mounted underneath the ground plane. The upper part of the antenna is an electric dipole comprising a pair of sector-shaped horizontal plates. It is connected to the lower part of the antenna, which functions as a folded magnetic current. The magnetic current is provided by a vertically-oriented shorted patch antenna of height H=28 mm and that has a Γ-shaped strip feed. The separation between the two vertical plates is G =10.7286 mm. Each Γ-shaped strip has a transmission line section and a coupled strip section. The transmission line has a characteristic impedance of 50 Ω. The thickness of the transmission line is 0.3 mm, and the separation between the transmission line and nearby vertical plate is 1 mm.

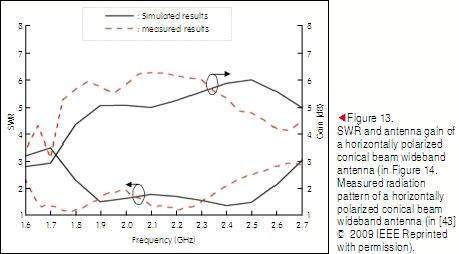

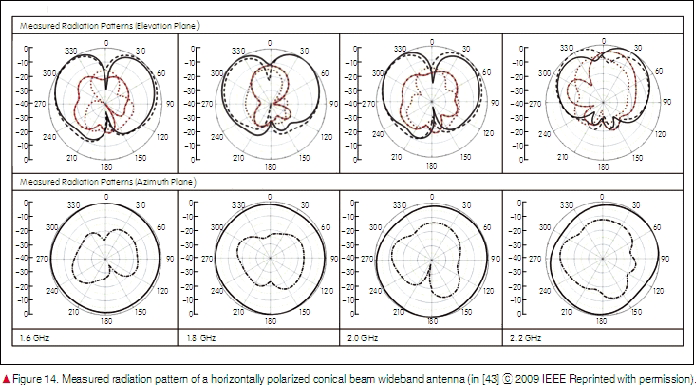

    The SWR and antenna gain are shown in Fig.13 [43]. The measured impedance bandwidth (SWR≤2) is about 38%, ranging from 1.61 GHz to 2.38 GHz. This is much larger than the bandwidth of many other designs of horizontally polarized conical beam antennas. The measured operating frequency band is slightly lower than the simulated operating frequency band by about 0.2 GHz, which is acceptable in practice. The measured gain is about 5 dBi on average, and the 3 dB gain bandwidth covers (and is larger than) the impedance bandwidth. The radiation patterns of the antenna at 1.6 GHz, 1.8 GHz, and 2 GHz are plotted in Fig.14 [43].  These are stable over the operating band.  Compared with the simulation results, the measured radiation patterns have slightly higher cross-polarization and back lobe levels.






5 Conclusions
    This paper begins by discussing the design of a magneto-electric dipole antenna. This structure has several advantages, including stable radiation pattern with low cross-polarization, low radiation, nearly identical E-and H-plane patterns, and stable antenna gain over the entire operating frequency range. The proposed antenna has more than 52% impedance bandwidth (for SWR≤2) with a stable gain of 8dBi and low back radiation. A dual-polarized antenna element based on the magneto-electric dipole is also presented. This antenna has about 67% (for SWR≤2) impedance bandwidth, and its isolation is more than 36 dB over the impedance bandwidth. The maximum gain is 9.5 dBi. Furthermore, a horizontally polarized conical beam wideband antenna is discussed. This antenna is low in profile (H=0.1867 λ0) and has about 38% impedance bandwidth (for SWR≤2) and an average antenna gain of 5 dBi.



References
[1] A.M.  Boifot, “Shortened, directive dipole for array antennas,” Int. J. Electron., 1991, 71, (1), pp. 127-137.
[2] C. M. Su, H. T. Chen, and K.L. Wong, “Printed dual-band dipole antenna with U-slotted arms for 2.4/5.2 GHz WLAN operation,” Electron. Lett., 2002, 38, pp. 1308-1309.
[3] E. Levine, S. Shtrikman and D. Treves, “Double-sided printed arrays with large bandwidth,” IEEE Proc. Microw., Antennas, Propag-Part H, vol.135, no.1, pp.54-59, 1988.
[4] S. Dey, P. Venugopalan, K. A. Jose, C.K. Aanandan, P. Mohanan and K.G. Nair, “Bandwidth enhancement by flared microstrip dipole antenna,” in IEEE Antennas and Propag. Soc. Int. Symp. (AP-S), vol.1, London, Ontario, 1991, pp. 342-345.
[5] Y. D. Lin and S. N. Tsai, “Coplanar waveguide-fed uniplanar bow-tie antenna,” IEEE Trans. Antennas Propag., vol. 45, no. 2, pp.305-306, 1997.
[6] K. Kiminami, A. Hirata and T. Shiozawa, “Double-sided printed bow-tie antenna for UWB communications,” IEEE Antennas Wireless Propag. Lett., vol. 3, no. 1, pp.152-153, 2004.
[7] J. I. Kim, B. M. Lee and Y. J. Yoon, “Wideband printed dipole antenna for multiple wireless services,” in IEEE Radio and Wireless Conf. (RAWCON’01), Boston, MA., 2001, pp.153-156.
[8] G. A. Evtioushkine, J. W. Kim and K. S. Han, “Very wideband printed dipole antenna array”, Electron. Lett., vol. 34, no. 2, pp. 2292-2293, 1998.
[9] K. M. Luk, C. L. Mak Y. Chow and K. F. Lee, “Broadband microstrip patch antenna,” Electron. Lett., vol. 34, no. 15, pp.1442-1443, 1998.
[10] C. L. Mak, K. M. Luk, K. F. Lee, and Y. L. Chow, “Experimental study of a microstrip patch antenna with an L-shaped probe,” IEEE Trans. Antennas and Propag., vol. 48, no. 5, pp. 777-783, 2000.
[11] Y. X. Guo, C. L. Mak, K. M. Luk, and K. F. Lee, “Analysis and design of L-probe proximity fed-patch antennas,” IEEE Trans. Antennas and Propag., vol. 49, no. 2, pp. 145-149, 2001.
[12] H. Wong, K. L. Lau and K. M. Luk, “Design of dual-polarized L-probe patch antenna arrays with high isolation,” IEEE Trans. Antennas Propag., vol. 52, no. 1, pp.45-52, 2004.
[13] H. Wong, and K. M. Luk, “A low-cost L-probe patch antenna array,” in Antennas Propag. Soc. Int. Symp., vol. 2, Boston, M.A., 2001, pp.280-282, 2001.
[14] F. Croq, and D. M. Pozar, “Millimeter wave design of wide-band aperture-coupled stacked microstrip antennas,” IEEE Trans. Antennas Propag., vol. 39, no.12, pp. 1770-1776, 1991.
[15] V. Rathi, G. kumar, and K. P. Ray, “Improved coupling for aperture coulped microstrip antennas,” IEEE Trans. Antennas Propag., vol. 44, No. 8, pp. 1196-1198, 1996.
[16] P. L. Sullivan, and D. H. Schaubert, “Analysis of an aperture coupled microstrip antenna,” IEEE Trans. Antennas Propag., vol. 34, no. 8, pp. 977-984, 1986.
[17] R. B. Waterhouse, “Design of probe-fed stacked patches,” IEEE Trans. Antennas Propag., vol. 47, no. 11, pp. 1780-1784, 1999.
[18] R. Q. Lee and K. F. Lee, “Experimental study of the two-layer electromagnetically coupled rectangular patch antenna,” IEEE Trans. AntennasPropag., vol. 38, no. 8, pp. 1298-1302, 1990.
[19] T. M. Au, and K. M. Luk, “Effect of parasitic element on the characteristics of microstrip antennas,” IEEE Trans. AntennasPropag., vol. 39, No. 8, pp. 1247-1251, 1991.
[20] H. Legay and L. Shafai, “New stacked microstrip antenna with large bandwidth and high gain,” IEEE Proc. Microw., AntennasPropag., vol. 141, no. 3, pp. 199-204, 1994.
[21] R. B. Waterhouse, “Design and scan performance of large, probe-fed stacked microstrip patch array,” IEEE Trans. Antennas Propag., vol. 50, no. 6, pp. 893-895, 2002.
[22] K. F. Lee, K. M. Luk, K. F. Tong, S. M. Shum, T. Huynh and R. Q. Lee, “Experimental and simulation studies of the coaxially fed U-slot rectangular patch antenna, ” IEEE Proc. Microw. Antenna Propag., vol. 144, no.5, pp. 354-358, 1997.
[23] T. Huynh, and K. F. Lee, “Single-layer single-patch wideband microstrip antenna,” Electron. Lett., vol. 31, no. 16, pp. 1310-1312, 1995.
[24] K. F. Lee, K. M. Luk, K. F. Tong, Y. L. Yung, and T. Huynh, “Experimental study of a two-element array of U-slot patches,” Electron. Lett., vol. 32, no. 5, pp. 418-420, 1996.
[25] M. Clenet, and L Shafai, “Multiple resonances and polarisation of U-slot patch antenna,” Electron. Lett., vol. 35, no. 2, pp. 101-103, 1999.
[26] K. F. Tong, K. M. Luk, K. F. Lee, and R. Q. Lee, “A broad-band U-slot rectangular patch antenna on a microwave substrate,” IEEE Trans. Antennas Propag., vol. 48, no. 6, pp. 954-960, 2000.
[27] Y. X. Guo, K. M. Luk, K. F. Lee, and Y. L. Chow, “Double U-slot rectangular patch antenna,” Electron. Lett., vol. 34, no. 19, pp. 1805-1806, 1998.
[28] A. Petosa, A. Ittipiboon and N. Gagnon, “Suppression of unwanted probe radiation in wideband probe-fed microstrip patches,” Electron. Lett., vol. 35, no. 5, pp. 355-357, 1999
[29] C. L. Mak, H. Wong and K. M. Luk, “High-gain and wide-band single-layer patch antenna for wireless communications, ” IEEE Trans. on Vehicular Tech., vol. 54, no. 1, 2005.
[30] H. W. Lai and K. M. Luk, “Design and study of wide-band patch antenna fed by meandering probe,” IEEE Trans. Antennas Propag., vol. 54, no. 2, 2006.
[31] H. W. Lai, and K. M. Luk, “Wideband patch antenna with low cross-polarisation,” Electron. Lett., vol. 40, no. 3, pp. 159-160, 2004.
[32] P. Li, H. W. Lai, K. M. Luk and K. L. Lau, “A Wideband patch antenna with cross-polarization suppression,” IEEE Antennas Wireless Propag. Lett., vol. 3, pp. 211- 214, 2004.
[33] H. W. Lai and K. M. Luk, “Wideband stacked patch antenna fed by a meandering probe,” Electron. Lett., vol. 41, pp. 297-298, 2005.
[34] H. W. Lai and K. M. Luk, “Wideband patch antenna fed by a modified L-shaped probe,” Microw. Optical Tech. Lett., vol. 48, no. 5, pp. 977-979, 2006.
[35] A. Clavin, “A new antenna feed having equal E- and H-plane patterns,” IEEE Trans. Antennas Propag., vol. 2, pp.113-119, 1954.
[36] A. Clavin, D. A. Huebner, and F. J. Kilburg, “An improved element for use in array antennas,” IEEE Trans. Antennas Propag., vol. 22, no.4, pp.521-526. 1974.
[37] R. W. P. King and G. H. Owyang, “The slot antenna with coupled dipoles, ” IRE Trans. Antennas Propag., vol. 8, pp.136-143, 1960.
[38] W. W. Black and A. Clavin, “Dipole augmented slot radiating element,” U.S. Patent 3594806, Jul. 1971.
[39] W. F. Gabriel and L. R. Dod, “A complementary slot-dipole antenna for hemispherical coverage,” NASA-Goddard Space Flight Center, Greenbelt, Md., NASA TM X-55681, Oct. 1966
[40] E. J. Wilkinson, “A circularly polarized slot antenna,” Microwave J., vol. 4, pp-97-100, Mar. 1961.
[41] Kwai Man Luk and Hang Wong, “A New Wideband Unidirectional Antenna Element,” Int. J. Microw. Optical Tech., vol. 1, no. 1, pp. 35- 44, 2006.
[42] Bi Qun Wu, and Kwai-Man Luk, “A Broadband Dual-Polarized Magneto-Electric Dipole Antenna With Simple Feeds,” IEEE Antennas Wireless Propag. Lett., vol. 8, pp. 60-63, 2009.
[43] Bi Qun Wu, and Kwai-Man Luk, “A Wideband, Low-Profile, Conical-Beam Antenna With Horizontal Polarization for Indoor Wireless Communications,” IEEE Antennas and Wireless Propag. Lett., vol. 8, pp. 634-636, 2009.

[Abstract] The magneto-electric dipole antenna is a kind of complementary antenna composed of a planar electric dipole and a shorted patch antenna. It has excellent electrical characteristics including wide impedance bandwidth, low cross-polarization, low back lobe radiation, nearly identical E-plane and H-plane patterns, stable radiation pattern, and steady antenna gain over the operating frequency range. In this paper, the basic characteristics of a linearly polarized magneto-electric dipole antenna are reviewed, and a dual-polarized antenna element based on the magneto-electric dipole is presented. The design of a conical beam wideband antenna with horizontal polarization is also described. These antennas have practical applications in modern 2G, 3G, LTE, WiFi, and WiMax wireless communication systems.

[Keywords] base station antenna; magneto electric dipole; wideband antenna; dual polarization
