MAC Protocols for Distributed Cooperative Communication Networks

This work was supported by the National Basic Research Program of China (“973” Program) under Grant No. 2009CB320404, National High Technology Research and Development Program of China (“863” Program) under Grant No. 2007AA01Z217, and National Natural Science Foundation of China under Grant No. 60972048.

    Recently, distributed networks have been attracting greater attention because of their flexible networking and easy deployment. However, multiple access protocol design still poses a significant challenge. As an emerging communication form, cooperative communication technology has also attracted close attention. Making full use of the omnidirectional propagation feature of radio transmission, this technology fulfills network resource sharing through cooperation among multiple nodes. Eventually, it greatly improves the performance of the entire network[1]. Early research into cooperative communication technology has focused on the physical layer[1-3], but lacks detailed study on how the cooperation concept influences upper-layer protocols, especially Media Access Control (MAC) protocol. The MAC protocol determines resource usage, and optimizing resource allocation is an important part of cooperative communication technology,  therefore, good MAC protocol design in the distributed cooperative communication system is most important for maximizing the advantages of the cooperative technologies.

1 Motive of MAC Cooperation
Currently, IEEE 802.11[4] multiple access protocols are the most popular Wireless Local Area Network (WLAN) access standards, and are widely applied to testing and simulation platforms of distributed networks. The 802.11 protocols can support multiple rates on the physical layer, and make adjustments according to different channel conditions. For example, IEEE 802.11b can support the rates of 1, 2, 5.5 and 11 Mbit/s separately. If the distance between two nodes is great or the channel condition is bad, message transmission only occurs at low rates (eg. 1 or 2 Mbit/s). This decreases the performance of the whole distributed network because not only is the transmission performance of the involved nodes influenced, but also the neighboring nodes have to wait a long time for transmission opportunities. Therefore, it is necessary to use the cooperation among nodes to improve network performance. One simple and effective method is to introduce a helper node for improving the transmission from the source node to the destination node[5-11]. If the conditions of both channels from the helper node to the source and destination nodes are good, high-speed cooperative transmission can be fulfilled. Accordingly, the saturated throughput of the entire network is improved. With the introduction of cooperative communication technology, the MAC protocol design of the distributed network becomes complex, posing new problems and challenges.

2 Problems and Challenges of Distributed Cooperative Multiple Access Protocol Design

2.1 “Cooperation” or “Uncooperativeness”
From the standpoint of Information Theory, cooperation always brings system gain, for example, diversity gain. However, in a real life system, the MAC protocol has to introduce overhead information to enable cooperation between nodes. This may lead to poor cooperation performance, or even totally counteract the gain brought about by the cooperation, badly impacting the system as a whole. Therefore, in the design of a distributed network, various system parameters (such as packet length and transmission rate) should be taken into account to decide if cooperation technology is to be introduced.

2.2 Selection of Cooperative Node
The following factors should be considered when selecting the cooperative node in a distributed network:

• Rate improvement. The introduction of cooperative nodes should obviously improve the information transmission rate.
• Interference Decrease. Because the introduction of cooperation increases interference with other nodes in the network, the cooperative nodes should minimize their interference with other data flows, in order to improve space reuse of the network.
• Fairness. The cooperative node consumes its own energy to help the source node finish its communication, so full consideration of network fairness should be given before the cooperative node is selected. Excessive use of certain nodes should also be avoided.

2.3 Problems of Hidden Terminals and Exposed Terminals
Hidden terminals and exposed terminals are important problems in the distributed network. The problems become more serious with the introduction of cooperation because cooperation necessarily increases handshake messages between nodes. They may greatly lower the probability of successful cooperation. Therefore, weakening or avoiding the influence of hidden terminal and exposed terminal problems is an important issue for the distributed cooperative protocol. Solutions include protocol optimization, and application of a smart antenna.

3 Typical Distributed Cooperative Multiple Access Protocols
    (1) CoopMAC Protocol
    Based on IEEE802.11 protocols, P. Liu et al proposed a CoopMAC protocol[5-6]. This protocol uses high-speed nodes to help low-speed nodes finish transmission, which greatly improves network throughput, shortens the access delay of nodes, and decreases the total energy consumption of all the nodes. In CoopMAC protocol, every node maintains a cooperation table which includes the rate from the source node to a relay node, the rate from the relay node to the destination node, and the table update time. When transporting data, a node first checks the table to determine whether there is a cooperative node to use and then decides whether to use cooperative transmission. When cooperative transmission is permitted, the source node sends Cooperative Request-To-Send (CoopRTS) first; the Helper node asseses whether it can support the expected rate after correctly receiving CoopRTS and, if possible, sends a Helper-Ready-To-Send (HTS); the destination node finally responds with Clear-To-Send (CTS), and the cooperative handshake process finishes. After that, the source node sends data at a high speed to the Helper, and the Helper transfers them at high speed to the destination node. Legacy 802.11b protocol is used when no cooperative transmission is required or there is no cooperative node. The handshake process of CoopMAC protocol is shown in Figure 1.

    In a fully connected network, the 3-way handshake mechanism required by cooperative transmission is not so different to the legacy RTS/CTS handshake mechanism, which just makes handshakes longer and more complex. However, in the distributed multi-hop network, the three-time handshake mechanism is influenced more by the hidden terminal problem. As shown in Figure 2, when the source node sends CoopRTS, Nodes {B, C, E, F, G, M, I} are all hidden terminals, and any may influence the correct reception of CoopRTS when it sends messages. When the Helper sends HTS, Nodes {B, E, F, G} are still hidden terminals. In this situation, Node B, for example, may interfere with the transmission of current handshake messages in a relative long time. Therefore, the hidden terminal problem may seriously influence the performance of CoopMAC protocol in a distributed multi-hop network.

    (2)“On-Demand” Cooperative MAC Protocol
    Some researchers believe each node in the CoopMAC protocol has to maintain the cooperative tables of its neighboring nodes, which increases storage overhead, and that node mobility and channel time-variance hinder the cooperative table from timely updating with the network status changes. Therefore, they have proposed proposed an “on-demand” cooperative MAC protocol[8]. In this protocol, a node does not maintain any information of the cooperative node. When there is data to be sent, the source node first sends the RTS message, and the destination node responds to the CTS message after it has received the RTS. Then the potential cooperative node can obtain the channel information from the source node to itself, HSR and that from the destination node to itself, HRD through the above two handshake messages. Cooperative nodes compete to participate in the cooperation by setting the backoff time T, as shown in Figure 3. T is the inversely proportional function of HSR  and HRD . However, in this protocol, the possibility of collision taking place during the cooperative node reservation may lead to the failure of the whole handshake process, as Figure 4 shows.

    (3) Cooperative MAC Protocol with Joint Signal Decomposition
    Early CoopMAC protocol uses the multi-rate transmission feature of 802.11, but only when the destination node is able to jointly decompose the signals from the source and destination nodes, can a real virtual Multiple-Input Multiple-Output (MIMO) system be built. Since signals come at different times and from different nodes, the system can obtain space and time diversity. Feilu Liu et. al. proposed a corresponding enhanced CoopMAC protocol[9], which has handshake and information transmission processes coherent with CoopMAC protocol, as shown in Figure 5. The destination receives two copies of the original packet, one from the source and one from the helper, and combines them for decoding. In a distributed multi-hop network, simulated performance of this enhanced protocol indicates about 10% throughput gain, when compared to that of the original CoopMAC protocol. However, this protocol has higher requirements of hardware devices.

    (4) Cooperative MAC Protocol Supporting Directional Antenna

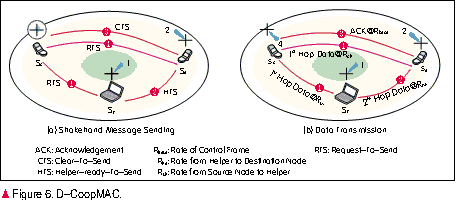

    In terms of the network, the introduction of cooperative nodes decreases the spatial reuse level of the entire network during cooperative communications. How to make up for the loss is an important issue in cooperative MAC protocol design, and is currently of great interest to researchers[10]. Zhifeng Tao et. al. proposed a D-CoopMAC protocol[11] with the condition that nodes have directional antennas. As shown in Figure 6, when transporting data, the source node must first omnidirectionally broadcast the RTS message. The cooperative node, after receiving the message, then moves the transmitting antenna toward the destination and sends the HTS message. After successfully receiving RTS and HTS, the destination node responds with CTS to the source node; and the resultant data transmission is directional. This method resolves the decrease in network space reuse to some extent, but also increases the complexity and cost of equipment.

    It is notable that, with the increased number of beams from directional antennas, D-CoopMAC performance is instead inferior to that of transmission directly through directional antenna. This is because the cooperative network needs space reuse to implement cooperation. Controlling overhead is also detrimental to network performance. Accordingly, the use of cooperation in any real network should be selective, or it may bring about the opposite result.


    The above analysis of these typical cooperative MAC protocols shows that different design criteria and methods should be chosen for different network environments and configurations. This is the only way to realize the gain in cooperative communication theory and further improve the whole network performance.

4 Conclusions
In this paper, we have detailed the motives of MAC-layer cooperation in distributed networks, highlighted the problems and challenges facing the design of MAC protocols in the distributed cooperative network, and discussed typical cooperative MAC protocols and their performance. The study of cooperative MAC protocol in the distributed network is ongoing, and designing a simple and effective cooperative MAC protocol with theoretical performance analysis will be one of the important research subjects in the future. Moreover, the existing cooperative MAC protocols involve no discussion about fairness between nodes, an issue which may throw the network into an uncooperative state.

References
[1] LANEMAN J N, TSE D, WORNELL G W. Cooperative diversity in wireless networks: efficient protocols and outage behavior [J]. IEEE Transactions on Information Theory, 2004, 50(12): 3062-3080.
[2] SENDONARIS A, ERKIP E, AAZHANG B. User cooperation diversity, part I: system description [J]. IEEE Transactions on Communications, 2003, 51(11): 1927-1938.
[3] SENDONARIS A, ERKIP E, AAZHANG B. User cooperation diversity, part II: implementation aspects and performance analysis [J]. IEEE Transactions on Communications, 2003, 51(11): 1939-1948.
[4] ANSI/IEEE Std 802.11. IEEE LAN MAN Standard, Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications [S]. 1999.
[5] LIU P, TAO Z, PANWAR S. A cooperative MAC protocol for wireless local area networks [C]//Proceedings of IEEE International Conference on Communications (ICC’05): Vol 5, May 16-20, 2005, Seoul, Korea. Piscataway, NJ, USA: IEEE, 2005: 2962-2968.
[6] LIU P, TAO Z, NARAYANAN S, et al. CoopMAC: a cooperative MAC for wireless LANs [J]. IEEE Journal on Selected Areas in Communications, 2007, 25(2): 340-354.
[7] ZHU H, CAO G.. rDCF: a relay-enabled medium access control protocol for wireless ad hoc networks [C]//Proceedings of 24th Annual Joint Conference of the IEEE Computer and Communications Societies (INFOCOM’05): Vol 1, Mar 13-17, 2005, Miami, FL, USA. Piscataway, NJ, USA: IEEE, 2005: 12-22.
[8] MOH S, YU C, PARK S M, et al. CD-MAC: cooperative diversity MAC for robust communication in wireless ad hoc networks [C]//Proceedings of IEEE International Conference on Communications (ICC’07), Jun 24-28, 2007, Glasgow, UK. Piscataway, NJ, USA: IEEE, 2007: 3636-3641.
[9] TAO Guo, CARRASCO R, WAI Lok Woo. Performance of a cooperative relay-based auto-rate MAC protocol for wireless ad hoc networks [C]//Proceedings of the 67th Vehicular Technology Conference (VTC-Spring’08), May 11-14, 2008, Singapore. Piscataway, NJ, USA IEEE, 2008: 11-15.
[10] LIU Feilu, KORAKIS T, TAO Zhifeng, et al. A MAC-PHY cross-layer protocol for wireless ad-hoc networks [C]//Proceedings of Wireless Communications and Networking Conference (WCNC'08), Mar 31-Apr 3, 2008, Las Vegas, NV, USA. New York, NY, USA: IEEE, 2008: 1792-1797.
[11] TAO Zhifeng, KORAKIS T, LIU Feilu, et al. Cooperation and directionality: Friends or foes? [C]//Proceedings of IEEE International Conference on Communications (ICC’08), May 19-23, 2008, Beijing, China. Piscataway, NJ, USA: IEEE, 2008: 4424-4430.

[Abstract] Distributed cooperative networks use the cooperation among nodes to fulfill network resource sharing. However, designing an efficient Media Access Control (MAC) protocol is a key issue for the distributed cooperative network. Based on the principle of MAC-layer cooperation, this paper discusses problems and challenges for MAC protocol design in the distributed cooperative network. Through the analysis of typical cooperative MAC protocols and their performance, this paper concludes that only a reasonable MAC protocol design with the features and demands of distributed networks taken into account can make cooperative communication technology a better application in the distributed network.
